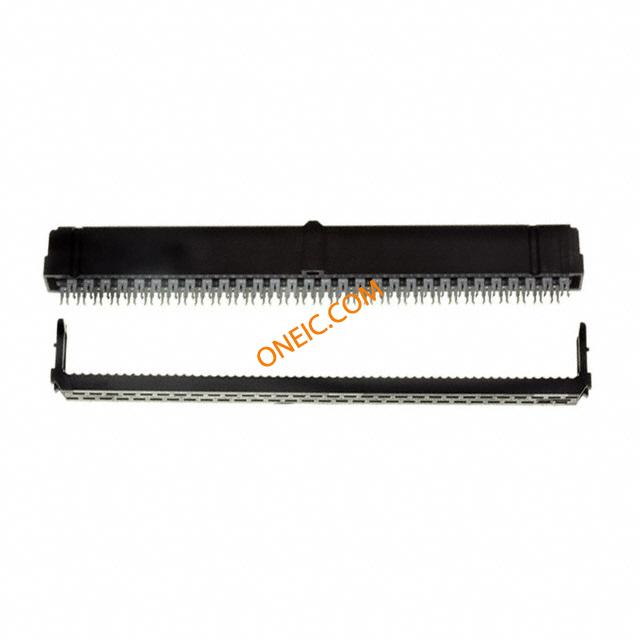

1-1658622-1

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 60POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 60P Headers & Wire Housings .1CL IDC REC 2X30P C&M 30AU Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVO60 PositionsReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 60POS, 2.54MM Connector,Receptacle;Novo;60;Gold(30);Tin-Lead;0.100in.x0.100in. 60 NOVO MIL/CTR 30DP,LEAD FREE
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMP-LATCH	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

电气参数

量程（°/s）	:TE - AMP-LATCH Novo Series	接触电阻	15 mohm
最大额定电流	1A	最小供电电压	250VAC

机械参数

颜色	Black	深度	7.49 mm
间距	2.54 mm	高度	15.97 mm
长度	3.18in	重量	0.005
包装方式	Bulk	导线类型	Ribbon Cable
出线方向	Without	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	极化	Center & Military
第二连接器	Without	外壳颜色	Black
安装类型	No	电缆端类型	Without
连接器类型	NOVO	接触镀层	Gold Over Palladium Nickel Over Nickel\|Gold Over Nickel
安装样式	Cable	排数	2
触头材料	Phosphor Bronze	壳体材料	Thermoplastic
总长度	80.77 mm	安装特性	Without
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	配接方向	With
触点数	60	接触件端接	:IDC / IDT
位数	60	中心触点材料	2.54 x 2.54 [.100 x .100]
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	AMP-LATCH, NOVO	产品特性	Feed Through, Polarizing Key
产品子类型	Receptacles / Sockets - Housings	连接类型	Ribbon Cable
带调制解调器控制	Yes

环境参数

工作温度

+105°C

文档与媒体

PDF 文档

1599153.pdf

在线文档

1-1658622-1?RQPN=1-1658622-1

相关型号

3-5499206-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings UNIV HDR 60P VT BLU LARGE LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER 60POS VERT GOLD A/L UNIV HDR 60P VERT LG LAT BLUE A/L UNIV HDR 60P VERT LG LAT BLUE Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥37.7400

详情

1-1761606-6

te connectivity / amp

Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 60POS Headers & Wire Housings 100X100 HDR 2X030P VERT LOW PROFILE Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 60POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,60POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 60路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 60P VERT LG LA

¥32.3000

详情

1-5102154-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 60POS .100 GOLD Connector,UniversalEjectionPinHeader Connector; Universal Ejection Pin Header; 60; 0.100 in. x 0.100 in.; Vertical Headers & Wire Housings 60 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Connector;UniversalEjectionPinHeader;60;0.100in.x0.100in.;Vertical A/L UNIV HDR 60P VERT

¥21.0120

详情

1-5103308-2

te connectivity / amp

Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 60POS GOLD Headers & Wire Housings A/L LOW PRO HDR 60P VERT BLACK Conn Shrouded Header HDR 60 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 602.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,AMP-LATCH,60POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK A/L LOW PRO HDR 60P VERT BLACK

¥22.6100

详情

1-5102160-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 60POS .100 GOLD Headers & Wire Housings 60 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P RA

¥19.8560

详情

1-499582-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Press Fit ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 60POS .100 GOLD

¥32.6400

详情

1-5499923-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 60POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 60P VERT LG LAT Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 602.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P VERT LG LAT

¥41.1060

详情

1-1761608-6

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 60POS AMPLATCH Pin Header Vertical Black 60 P Headers & Wire Housings 100X100 HDR 2X030P VRT LPRO Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 602.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDCLOWPROHDR60PVERTSHTLATBLK IDC LOW PRO HDR 60P VERT SHT LAT BLK

¥32.3680

详情

2-111446-5

te connectivity / amp

Conn IDC Connector PL 60 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 60POS UNIV I/O NO EARS 060 UNIV I/O 30DP NO EARS 060 UNIV I/O 30DP NO EARS Search Keywords:input/output, paddleboard, paddle board

¥33.7484

详情

1-5499913-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 60POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 60P RA SHT LAT Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard Profile60 Positions2.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P RA SHT LAT

¥35.8360

详情

1-5102159-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 60POS .100 GOLD Headers & Wire Housings 60 POS HDR 15AU R/A W/OUT LATCHES Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 602.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P RA

¥15.5040

详情

1-5499922-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 60POS .100 15AU Headers & Wire Housings A/L UNIV HDR 60P VERT LG LAT Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard Profile60 Positions2.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P VERT LG LAT

¥25.0240

详情

3-5102322-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 60POS R/A GOLD Headers & Wire Housings UNIV HDR 60P RA BLUE LARGE LATCH Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 602.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P RA LG LAT BLUE

¥20.9916

详情

1-5102162-1

te connectivity / amp

Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 60POS .100 GOLD 1-5102162-1 Conn Ejector Header HDR 60 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 602.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P RA

¥26.9280

详情

3-5499374-1

TE Connectivity / AMP

Headers & Wire Housings UNIV HDR 60P VT BLU SHORT LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 60POS .100 GOLD A/L UNIV HDR 60P VERT SHT LAT BLUE

¥20.9916

详情

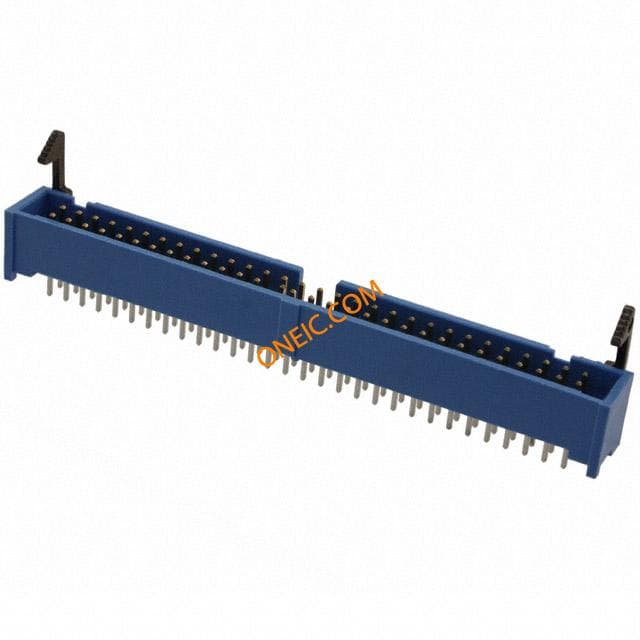

3-1761608-6
