5102154-9
| 制造商 | TE Connectivity Ltd. |

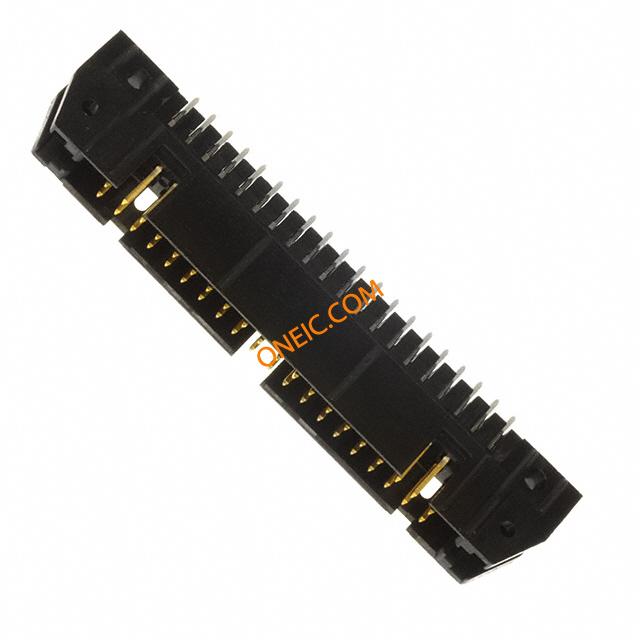

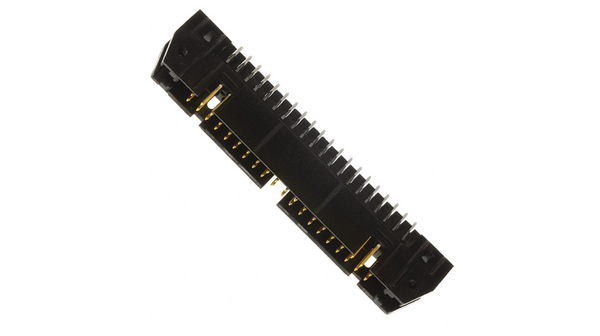

| 描述 | Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 40 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM Header;UniversalEjectionPinHeader;40;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 40P, 5102154-9, TE Connectivity A/L UNIV HDR 40P VERT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 13.94 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 极化 | Center, Dual Polarizing Bar, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 1.57 [0.062] | 外形（宽 x 高） | Standard |
| 触头材料 | Brass, Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 70.1 mm | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 40 |
| 接触件端接 | :Through Hole Vertical | 位数 | 40 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | Without | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | +105°C |
相关型号
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
102320-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR LONG Latch Long Black AmpLatch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, EJECTOR LATCH, UNIVERSAL HEADER HeaderLatches,formatingreceptacleswithstrainrelief TE Connectivity 闩锁, 使用于AMPLATCH Novo 系列 UNIVERSAL HEADER LATCH
1658623-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 40POS GOLD AMP-LATCHNOVOReceptacleforRibbonCable Headers & Wire Housings .1CL IDC REC 2X20P MIL 30AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM AMP-LATCHNOVOReceptacleforRibbonCable,40position,.100X.100Centerline Amp-Latch 40 Position NOVO Ribbon Cable IDC Socket 40 NOVO MIL 30DP, LEAD FREE
1-487223-0
te connectivity / amp
Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 040 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 40 HSG RCPT 100CL DR Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
2-1658526-1
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS VERT .100 GOLD Headers & Wire Housings IDC RCPT 40P W/STR RLF Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 40WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,40POSITION,MATINGPOLARIZATION 609-4041LF FEM SOCKT,LEAD FREE
2-1658526-0
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS VERT GOLD Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization 609-4030LF FEM SOCKT,LEAD FREE
102312-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR SHORT Latch accessory black Amp-Latch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, HeaderLatches,formatingreceptacleswithoutstrainrelief Ejector/latchP, 102312-1, TE Connectivity TE Connectivity 应力释放支架, 使用于 AMPLATCH Connector 带状电缆 UNIVERSAL HEADER LATCH
1658624-9
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS POLAR GOLD Headers & Wire Housings 40 NOVO DUAL 30DP, LEAD FREE Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Type = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 40 NOVO DUAL 30DP, LEAD FREE
1658622-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 40POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 40P Headers & Wire Housings .1CL IDC REC 2X20P C&M 30AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,40pos. AMP LATCH 40 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle TE Connectivity AMP-LATCH Novo 系列 2行 40路 2.54mm节距 母 IDC 连接器 , 电缆安装 40 NOVO MIL/CTR 30DP,LEAD FREE
499252-1
te connectivity / amp

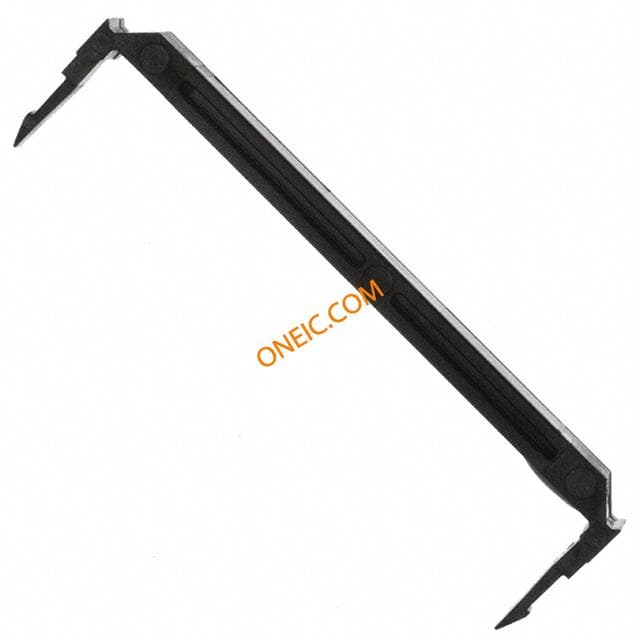

Connector Accessories 40 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 40POS SOCKET CONN 40 way IDC strain relief Connector Accessories 40 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 40Search Keywords:input/output, paddleboard, paddle board STRAIN RELIEF, 40WAY StrainRelief,CableConnector;40;Thermoplastic;UL94V-0;Black Strain relief 40P, 499252-1, TE Connectivity TE Connectivity 40路 应力释放支架, 使用于 AMP-LATCH NOVO 系列 040 STRAIN RELIEF A-L RCPT
1-1658528-9
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) FEM SKT BLD POL S/R 1 Headers & Wire Housings 636-4041LF WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM 636-4041LF=FEM SKT BLD POL S/R
1-1658527-3
te connectivity / amp

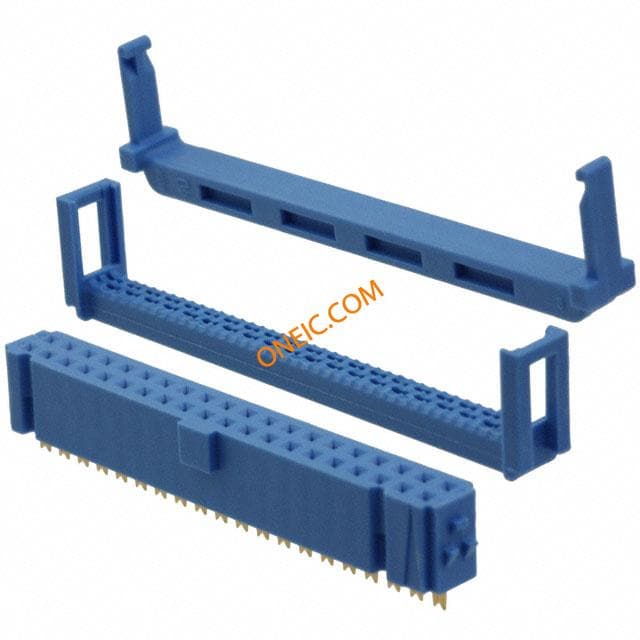

Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS .100 W/STR REF 40 way IDC bump polarised socket Headers & Wire Housings 40 POS RECPT 30 AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 40WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,40POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 622 系列 2行 40路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-4041LF FEM SOCKT,LEAD FREE
