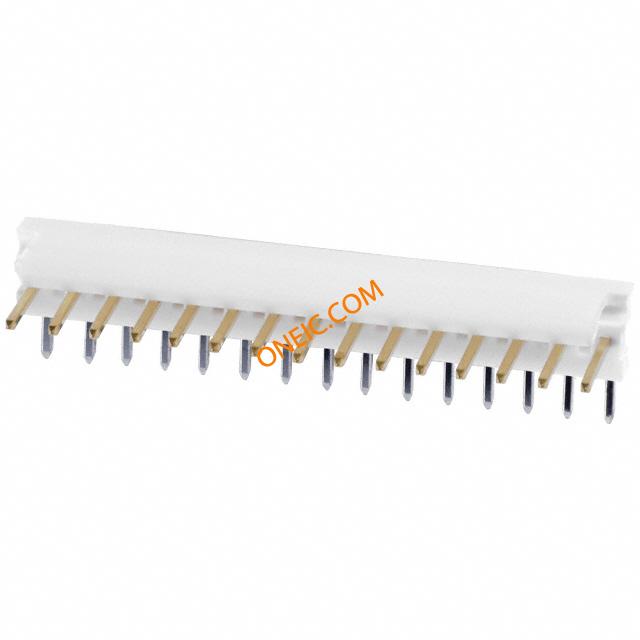

4-641216-5

点击放大查看

4-641216-5

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 15 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 15POS .100 30AU Headers & Wire Housings 15P MTA100 HDR ASSY FL/RA LF Conn Wire to Board HDR 15 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 Connectors15 PositionsMating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 HDR ASSY FL/RA LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5

机械参数

颜色Natural间距2.54 mm
高度7.87 mm [ .31 in ]长度38.1 mm [ 1.5 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然引脚样式正方形
端接方式Solder触头类型Male Pin
第二连接器With触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Unshrouded接触镀层Gold Over Nickel
触点时序Without紧固类型Friction Lock
安装样式不带排数1
外壳材料（壳体）摩擦锁连接器用途Header
插入件材料铜合金锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量1
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数15
端接表面处理不带位数15
执行器方向前部后壳中断功能Without
衬套/护套类型不带兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径不带
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]接触镀层厚度30µin (0.76µm)
恢复后小径No静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None
