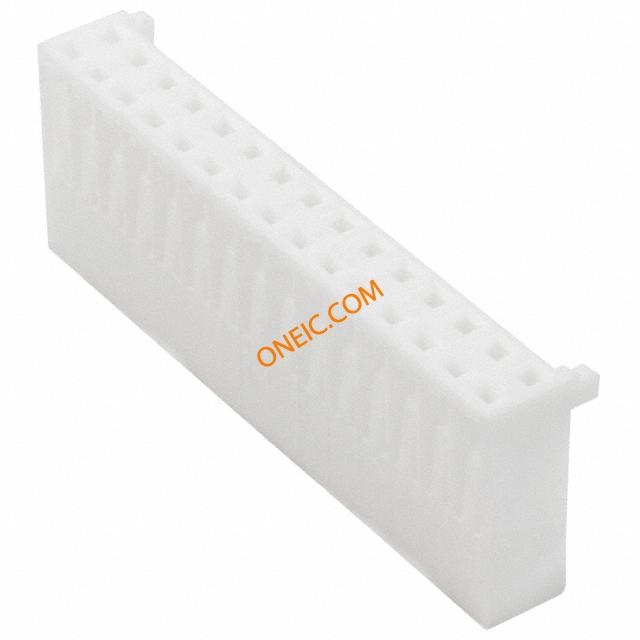

1-1375820-5
| 制造商 | |
| 描述 | Conn Housing RCP 15 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 15POS .100 Headers & Wire Housings CST-100 II HOUSING 1 Conn Housing RCP 15 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 15Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 15 POS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 已认证 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 压接 |
| 最大额定电流 | 7 | ||
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 高度 | 6.6 mm [ .26 in ] | 长度 | 38.61 mm [ 1.52 in ] |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 遮蔽类型 | No | 壳体颜色 | 自然 |
| 出线方向 | 180° | 导线线规 | 22-28 AWG |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | 2.54 [0.100] |
| 紧固类型 | Locking Ramp | 安装样式 | 不带 |
| 排数 | 1 | 连接器用途 | Receptacle |
| 壳体材料 | Polymer | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 15 |
| 端接表面处理 | 不带 | 接触件端接 | Crimp |
| 位数 | 15 | 兼容外壳尺寸（如TM-700等） | 配合指定的 MTA .100 接头、类似竞争性带缺口接头和 CST .100 带罩接头 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | CST-100 II Housings | 应用细节 | Wire-to-Board |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
