1375819-2

点击放大查看

1375819-2

制造商
TE Connectivity Ltd.
描述
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Headers & Wire Housings 0.1 CONTACT Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 II ContactsWire Termination Type = CrimpGold (15) over Nickel Contact Mating Area PlatingWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 II HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP TE Connectivity CST-100 II 系列 母 压接触点, 压接, 镀金镀镍触点 CST-100 II CONTACT 15 GOLD PLT
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A100454CT零件号别名1375819-2
产品类别Headers & Wire Housings标准包装数量Tape & Reel
工厂包装数量5500

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

额定电压250 V供电电压250
接触电阻10mΩ连接器阻抗压接
最大额定电流6.5 A

机械参数

包装方式Tape & Reel (TR)电缆类型分离式导线, 绞线
导线线规0.12-0.4² [26-22]端接方式Crimp
触头类型Signal插针或插孔Socket
电缆直径0.35mm²连接器类型Connector Headers and PCB Receptacles
接触镀层Gold Over Nickel插入件材料磷青铜
触头材料Phosphor Bronze框架材料镍
包装数量Strip端接排数压接
端接样式Crimp第一触头极性Pin (Male)
端接表面处理带有接触件端接Crimp
绝缘直径1.65 [0.065]镀层厚度（通用）镀金
兼容外壳尺寸（如TM-700等）CST-100 II 连接器接触件表面处理 - 配合金
接触镀层厚度15µin (0.38µm)线规或范围 - AWG22AWG
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

制造商.38备注钯镍镀金或镍镀金 (30)
连接器性别SKT系列CST-100
产品子类型CST-100 II Contacts适用产品/相关产品CST-100 II Housings

环境参数

工作温度+105°C

文档与媒体

在线文档
1375819-2?RQPN=1375819-2

相关型号

暂无图片

1-1375820-1

te connectivity / amp

Conn Housing RCP 11 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 11POS CST-100 II Headers & Wire Housings RECPT HOUSING 11 POS CST-100 Conn Housing RCP 11 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 11Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 11 POS

¥6.1594
详情
1375820-3

1375820-3

te connectivity / amp

Conn Housing RCP 3 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 3POS CST-100 II 3w housing CST-100 II Headers & Wire Housings 3P 2.54MM HOUSING Conn Housing RCP 3 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100IIHOUSING3POS Socket housing, straight 3P, 1375820-3, TE Connectivity TE Connectivity CST-100 II 系列 2.54mm 节距 3 路 直 母 PCB 壳体 CST-100 II HOUSING 3 POS

¥0.3808
详情
暂无图片

2-1375820-0

te connectivity / amp

Conn Housing RCP 20 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 20POS .100 CRIMP WHITE Headers & Wire Housings RCPT 20 POS .100 WHT CST-100 II Conn Housing RCP 20 POS 2.54mm Crimp ST Product Highlights:20 PositionsWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = ReceptacleCST-100 II Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100IIHOUSING12POS CST-100 II HOUSING 20 POS

¥5.8195
详情
1375820-8

1375820-8

te connectivity / amp

Conn Housing RCP 8 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 8POS CST-100 II Headers & Wire Housings HSG REC 1X08C STD 26-22AWG Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPT. 8 WAY CST-100IIHOUSING8POS Socket housing, straight 8P, 1375820-8, TE Connectivity CST-100 II HOUSING 8 POS

¥1.2852
详情
暂无图片

2-1375820-4

te connectivity / amp

Conn Housing RCP 24 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 24POS CST-100 II Headers & Wire Housings RCPT 24 POS .100 WHT CST-100 II CST-100 II HOUSING 24 POS CST-100 II HOUSING 24 POS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.4666
详情
暂无图片

1-1375820-9

te connectivity / amp

Conn Housing RCP 19 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 19POS CST-100 II Headers & Wire Housings 19P RECEPT HSNG Conn Housing RCP 19 POS 2.54mm Crimp ST Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 19 POS

¥2.3460
详情
1-1375820-0

1-1375820-0

te connectivity / amp

Conn Housing RCP 10 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 10POS CST-100 II 10w housing CST-100 II Headers & Wire Housings HSG REC 1X10C STD 26-22AWG Conn Housing RCP 10 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 10Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM CST-100IIHOUSING10POS Socket housing, straight 10P, 1-1375820-0, TE Connectivity TE Connectivity CST-100 II 系列 2.54mm 节距 10 路 直 母 PCB 壳体 CST-100 II HOUSING 10 POS

¥0.6105
详情
1375820-6

1375820-6

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 6POS CST-100 II 6w housing CST-100 II Headers & Wire Housings HSG REC 1X06C STD 26-22AWG Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, 2.54MM, 6WAY CST-100IIHOUSING6POS TE Connectivity CST-100 II 系列 2.54mm 节距 6 路 直 母 PCB 壳体 CST-100 II HOUSING 6 POS

¥0.5769
详情
1375820-5

1375820-5

te connectivity / amp

Conn Housing RCP 5 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 5POS CST-100 II 5w housing CST-100 II Headers & Wire Housings HSG REC 1X05C STD 26-22AWG Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPT. 5 WAY CST-100IIHOUSING5POS Socket housing, straight 5P, 1375820-5, TE Connectivity TE Connectivity CST-100 II 系列 2.54mm 节距 5 路 直 母 PCB 壳体 CST-100 II HOUSING 5 POS

¥0.8092
详情
1-1375820-6

1-1375820-6

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 16POS CST-100 II Headers & Wire Housings 16P RECEPT HSNG Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 16Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 16 POS

¥1.7612
详情
1-1375820-5

1-1375820-5

te connectivity / amp

Conn Housing RCP 15 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 15POS .100 Headers & Wire Housings CST-100 II HOUSING 1 Conn Housing RCP 15 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 15Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 15 POS

¥1.0812
详情
2-1375820-8

2-1375820-8

te connectivity / amp

Conn Housing RCP 28 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 28POS CST-100 II Headers & Wire Housings RCPT 28P CST-100 II Conn Housing RCP 28 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 28Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 28 POS

¥3.4612
详情
1375820-2

1375820-2

te connectivity / amp

Conn Housing RCP 2 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 2POS CST-100 II 2w housing CST-100 II Headers & Wire Housings 2P 2.54MM HOUSING Conn Housing RCP 2 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPT. 2 WAY CST-100IIHOUSING2POS Socket housing, straight 2P, 1375820-2, TE Connectivity TE Connectivity CST-100 II 系列 2.54mm 节距 2 路 直 母 PCB 壳体 CST-100 II HOUSING 2 POS

¥0.2788
详情
1-1375820-4

1-1375820-4

te connectivity / amp

Conn Housing RCP 14 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 14POS CST-100 II Headers & Wire Housings RECPT HOUSING 14 POS CST-100 Conn Housing RCP 14 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 14 POS

¥1.5436
详情
2-1375820-6

2-1375820-6

te connectivity / amp

Conn Housing RCP 26 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 26POS CST-100 II Headers & Wire Housings RCPT 26 POS .100 WHT CST-100 II MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:CST-100 II HousingsNumber of Positions = 26Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 26 POS

¥4.4322
详情
2-1375820-7

2-1375820-7

te connectivity / amp

Conn Housing RCP 27 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 27POS CST-100 II Headers & Wire Housings RCPT 27 POS .100 WHT CST-100 II CST-100 II HOUSING 27 POS CST-100 II HOUSING 27 POS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.7200
详情
暂无图片

1-1375820-7

te connectivity / amp

Conn Housing RCP 17 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 17POS CST-100 II Headers & Wire Housings 17P RECEPT HSNG CST-100 II HOUSING 17 POS CST-100 II HOUSING 17 POS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.3532
详情
暂无图片

2-1375820-3

te connectivity / amp

Conn Housing RCP 23 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 23POS CST-100 II Headers & Wire Housings RCPT 23P CST-100 II CST-100 II HOUSING 23 POS CST-100 II HOUSING 23 POS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 23 Position 2.54mm Pitch Locking Ramp Housing for Receptacle

¥2.3120
详情

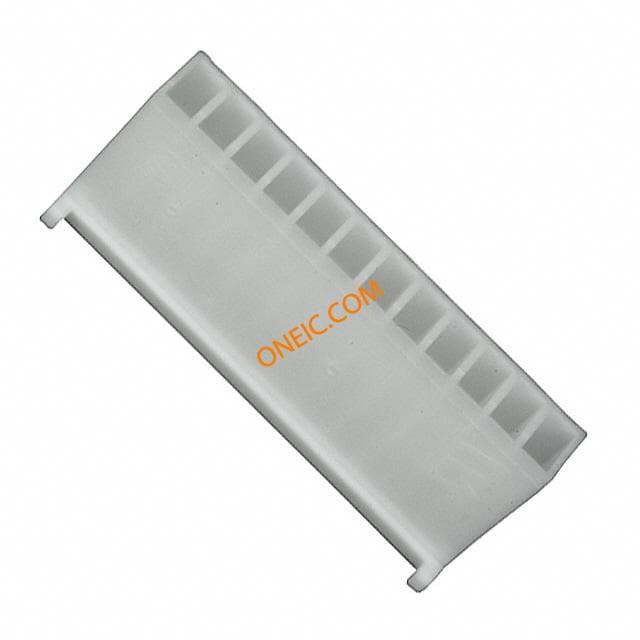

1-1375820-2
