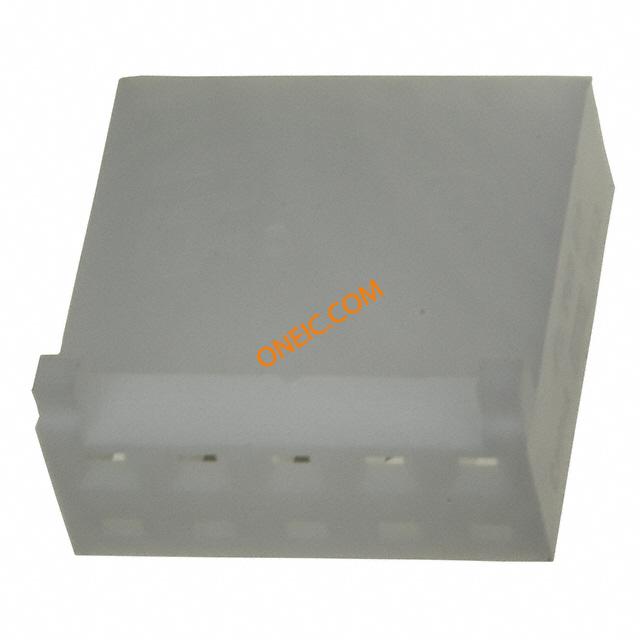

1375820-5
| 制造商 | |
| 描述 | Conn Housing RCP 5 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 5POS CST-100 II 5w housing CST-100 II Headers & Wire Housings HSG REC 1X05C STD 26-22AWG Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPT. 5 WAY CST-100IIHOUSING5POS Socket housing, straight 5P, 1375820-5, TE Connectivity TE Connectivity CST-100 II 系列 2.54mm 节距 5 路 直 母 PCB 壳体 CST-100 II HOUSING 5 POS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - CST-100 II Series | ||
机械参数
| 颜色 | White | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 长度 | 13.21mm | 重量 | 0.00227 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 导线线规 | 22-28 AWG |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | 2.54 [0.100] | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | :Phosphor Bronze |
| 壳体材料 | Polymer | 总长度 | 0.52" |
| 安装特性 | Without | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
产品信息
| 备注 | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | CST-100 II Housings | 应用细节 | Wire-to-Board |
| 适用产品/相关产品 | Centerline Economy Power Connector | ||
环境参数
| 工作温度 | -55to+105°C | ||
文档与媒体
相关型号
3-641212-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASSY PL RA LF 05P MTA100 HDR ASSY PL RA LF 05P MTA100 HDR ASSY PL RA LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641215-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 30AU TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:5 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 5POS, 2.54MM HEADER,MTA-100,5POSITION,2.54MM,FRICTIONLOCK TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY FL 30AU LF
641215-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS 30AU Headers & Wire Housings FRICTION LCK HDR 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/ST 30AU
640453-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings FLAT HEADER 5P Right Angle Post tin Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.1", 5WAY Header;MTA-100;5;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 05P MTA100 HDR ASSY SQ R/A
644875-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .100 TIN Headers & Wire Housings 05P MTA100 HDR ASSY F/L SP BND Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY F/L,SP BND
640454-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 5P Straight Post tin Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 5WAY HEADERASSEMBLY,MTA-100,POLARIZED,5POSITION,STRAIGHT Connector: wire-board; Series: MTA-100; male; socket; tinned; PIN:5 TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY SQ STR POL
641216-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings FRICTION LCK HDR 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/RA 30AU
644893-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN Headers & Wire Housings 05P CST100 SHRD HDR ASSY W/PEG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector5 PositionsConnector Type = Header - PinCST-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641213-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/ST 30AU
3-641214-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings HDR R/A .100 5P 30AU Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/RA LF
3-644694-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings HDR 5 POS R/A TIN 05P MTA100 R/A HDR RETENTIVE
647106-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA-100 HDR ASSY,SM,SN
3-641213-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 30AU Headers & Wire Housings POLARIZED HEADER 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/ST LF
3-641216-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 5POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/RA LF
641211-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASSY PL STR 30A Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASY PL STR 30A
3-647609-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN Headers & Wire Housings 05P MTA100 HDR ASSY F/L LF 05P MTA100 HDR ASSY F/L LF 05P MTA100 HDR ASSY F/L LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640455-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings POLARIZED HEADER 5P Right Angle Post tin Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,05PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 2.54mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 05P MTA100 HDR ASSY SQ R/A POL
3-641211-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASY PL STR LF Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASY PL STR LF

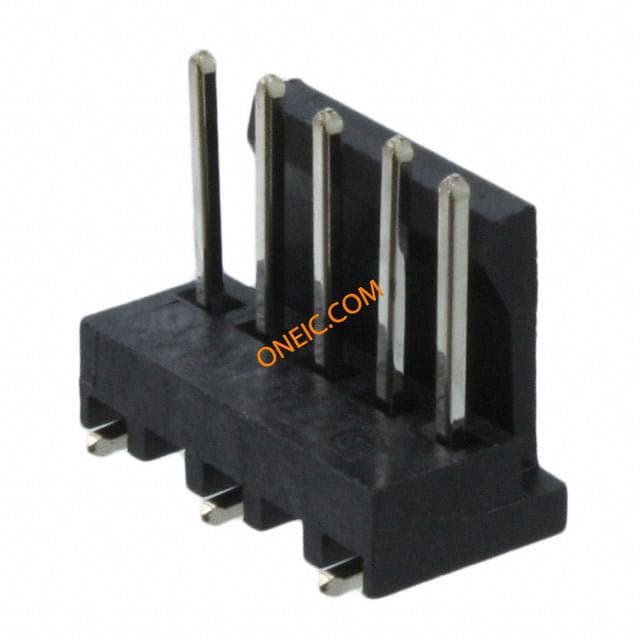

3-647166-5
