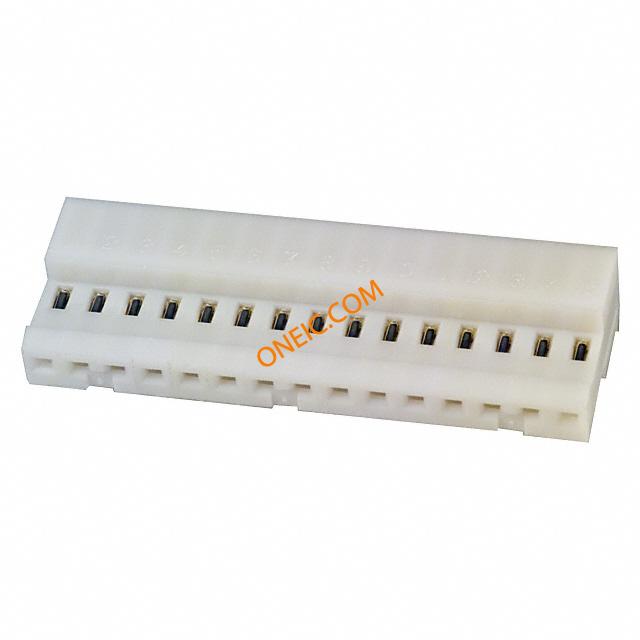

4-640441-5

点击放大查看

4-640441-5

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 24AWG MTA100 Receptacle,2.54mm IDT,r/a,3way Headers & Wire Housings REC 15P C/E 24AWG W/O TABS Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 15WAY RCP,2.54MMIDT,R/A,3W TE Connectivity MTA-100 系列 3路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 15P MTA100 CONN ASSY WHT
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-2

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V ac
开关功能Ramp Lock额定交流电压250
最大额定电流5A触点额定电流:4A

机械参数

颜色White间距2.54 mm
重量0.0274包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规24 AWG
端接方式IDT触头类型Female Socket
引脚间距:2.54mm第二连接器With
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin Over Nickel
紧固类型Locking Ramp安装样式Wire
排数1封装形式:Thermoplastic
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)连接器颜色:Natural
配接方向Without触点数15
接触件端接:IDC / IDT位数15
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.2² [24]
第一连接器安装类型:PC Board

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None
