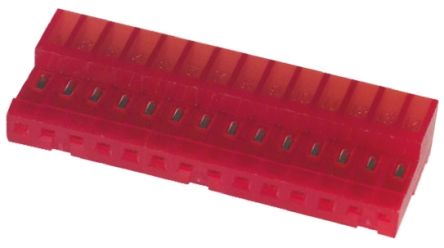

4-640440-5

点击放大查看

4-640440-5

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 22AWG MTA100 Headers & Wire Housings REC 15P C/E 22AWG W/O TABS Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 15POS, 2.54MM MTA-100CONNECTORTIN,15PMTA100CONNASSY22AWGRED TE Connectivity MTA-100 系列 15路 2.54mm节距 母 IDC 连接器 , 电缆安装 15P MTA100 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 VAC
开关功能Ramp Lock接触电阻6 mohm
额定交流电压250最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Red深度6.99 mm
间距2.54 mm高度13.21 mm
重量0.002包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规22 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin Over Nickel紧固类型Locking Ramp
安装样式Wire排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon总长度38.1 mm
安装特性Without包装数量Loose Piece
面板安装类型Without主要材料InterconnectSystem
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数15接触件端接:IDC / IDT
位数15典型触点布局2.54 [0.100]
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55C to 105C
