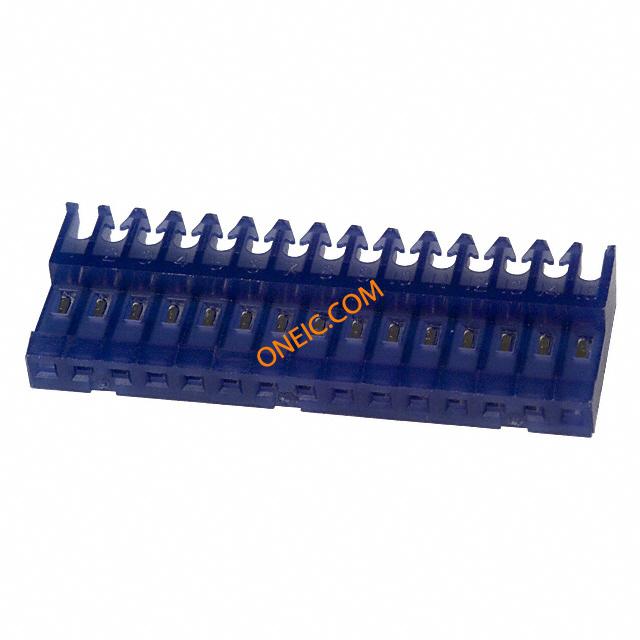

1-640622-5

点击放大查看

1-640622-5

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS MTA-100 26AWG
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-2

电气参数

额定交流电压250

机械参数

颜色Blue间距2.54 mm
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规26 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin-Lead Over Nickel
紧固类型Locking Ramp排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC配接方向Without
触点数15位数15
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]

产品信息

类型IDC Connector连接器性别F
产品特性Feed Through制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None
