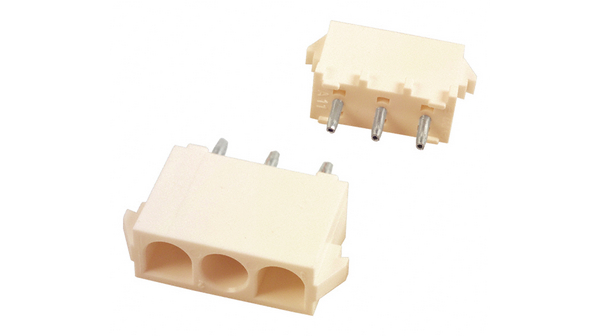

350429-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL PIN Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, SINGLE ROW, 3 WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Nylon;Natural;19A;600VAC Socket; wire-board; male; 6.35mm; PIN:3; tinned; Pin layout:1x3 Pin header Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350429-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-2 |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 19A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 重量 | 0.002 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 1 |
| 连接器 - 电缆 | socket | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Natural | 触点数 | 3 |
| 接触件端接 | :Through Hole Vertical | 位数 | 3 |
| 安装孔直径 | :1.78mm | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| SPG | 1 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 端口数 | 1 Port |
| 单元数量 | 1 | 加载位置数 | All |
