1-480700-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-2 |
电气参数
| 额定电压 | 600 V | 接触电阻 | :3.5mohm |
| 介电强度 | :5000V | 最大额定电流 | 19 A |
| 绝缘电阻 | :1000Mohm | 最小输入电压 | 600VAC |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 长度 | 14.73mm | 重量 | 0.002 |
| 材料（通用） | :Nylon | 包装方式 | Individual |
| 导线线规 | 10-30 AWG | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 锁定特性 | lock |
| 本体材料 | :Nylon (Polyamide) | 壳体材料 | Nylon |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | 6.35 mm Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :125°C |
相关型号
350583-1
te connectivity / amp

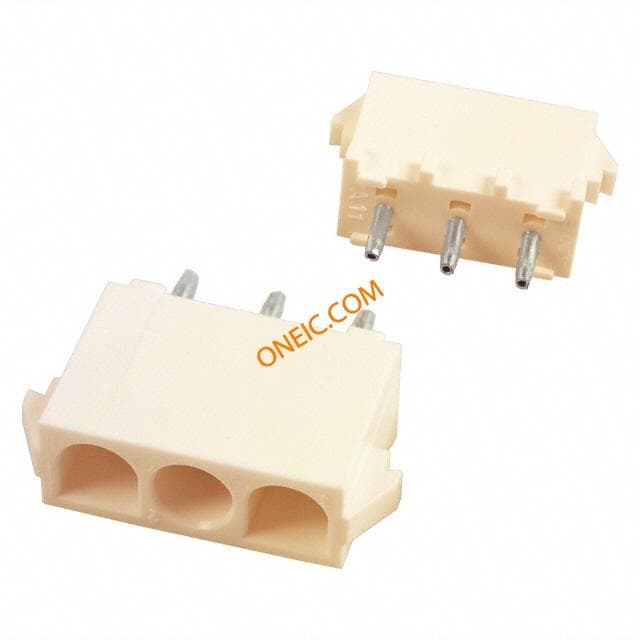

Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board PCB PIN HDR 3P Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PIN HDR ASSY V2 NATL
1-480701-6
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L BLUE Power to the Board CAP HOUSE 3 POS BLUE UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG BLU
1-480701-1
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max 03P UMNL CAP HSG BRN Power to the Board CAP HOUSE 3 POS BROWN UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON
350767-1
te connectivity / amp

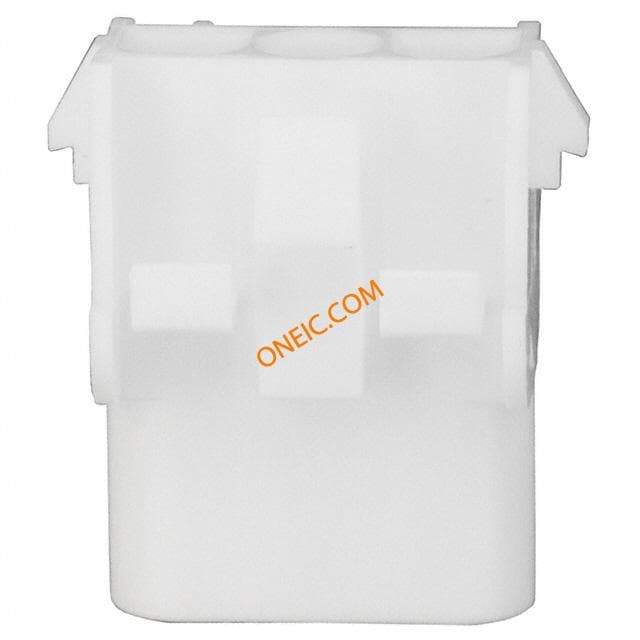

Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS 94V-0 UNI-MATE 3 way white receptacle housing Pin & Socket Connectors 03P HSG. CAP. Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350767-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 母 压接连接器外壳 03P UMNL CAP HSG V0
643413-1
te connectivity / amp
Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board 3P SOCKET .25 CTR Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;3Pos;UnivMATE-N-LOK;Vertical;PositLock;Natural 03P UMNL HDR ASSY SCKT POL
1-480701-9
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 3POS 94V-2 BLK Housing,receptacle,Mate-n-lok,3 Way,Blck Power to the Board CAP HSG 3P BLK Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Housing,receptacle,Mate-n-lok,3Way,Blck Conn;CapHsg;3Pos;UnivMATE-N-LOK;Black 250" Centerline, 600 V, 19 - 36 A max Universal MATE-N-LOK Connector Receptacle housing Pitch6.35 mm Poles 3 Single row / for panel mount MATE-N-LOK Universal, 1-480701-9, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 母 电缆安装 压接连接器外壳 03P UMNL CAP HSG BLK
350760-4
te connectivity / amp
Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL SOC Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER 2 HEADERASSEMBLY,UNIVERSALMATE-N-LOK,3POSITION,SOCKET,NATURAL,PCB Socket header Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350760-4, TE Connectivity 03P UMNL HDR ASSY PC
2-480701-0
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L NATURAL Power to the Board 03P CAP HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG NATL
350429-2
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 AU Pin & Socket Connectors 3P VERT HEADER Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
350789-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL PIN Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, 3 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;3;Nylon Socket; wire-wire/PCB; male; 6.35mm; PIN:3; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY 94VO
1-480701-5
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L GREEN Power to the Board CAP HOUSE 3 POS GREEN UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 03P UMNL CAP HSG GRN
1-480701-0
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS 94V-2 UNI-MATE Housing,receptacle,free hanging,3way Pin & Socket Connectors CAP HOUSE 3 POS Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:3; 600V Receptacle housing Pitch6.35 mm Poles 3 Single row / for panel mount MATE-N-LOK Universal, 1-480701-0, TE Connectivity 03P UMNL CAP HSG NATL
641965-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Power to the Board PIN HDR ASSY 3P .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 15A Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 3POS, 6.35MM UNIVM-N-LHEADER,03PUMNLPINHDRASSYV2NATL TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 03P UMNL PIN HDR ASSY V2 NATL
1-480701-4
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L YELLOW Power to the Board 03P CAP HSG YEL Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG YELL
1-480701-8
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L GRAY Power to the Board CAP HOUSE 3 POS GRAY UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG GRY
1-350789-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 6.35mm Solder ST Thru-Hole Power to the Board 03P PIN HDR VO, RED CONN PIN HEADER 3POS U-M-N-L RED
350789-2
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 AU
641966-1
te connectivity / amp

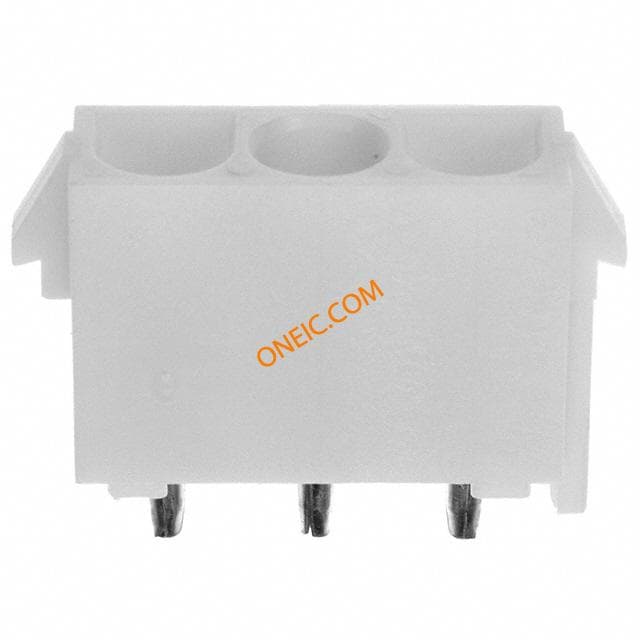

Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Power to the Board 3POS VERT MATE-N-LOK Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER,PIN,3WAY,180DEG Conn;Header;Plug;3Pos;UnivMATE-N-LOK;Vertical;White;Pre-Tin TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY 94VO
350849-3
te connectivity / amp

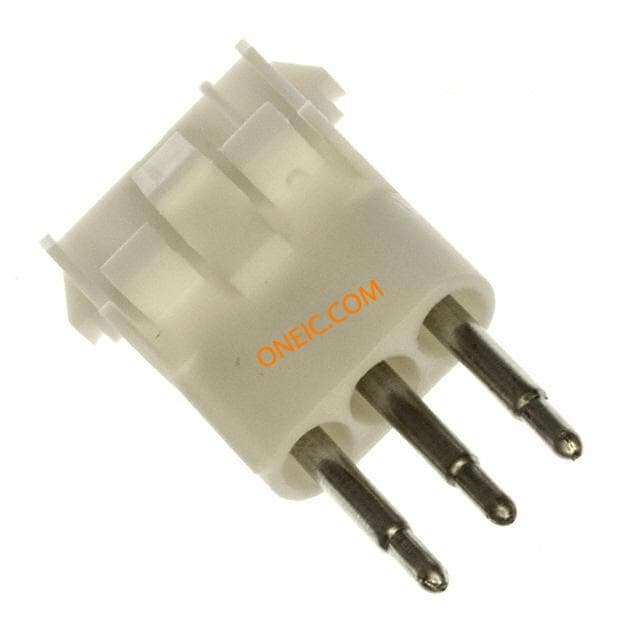

Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount One Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-MATE-N-LOK Pin & Socket Connectors 3P CAP TEST ASSY 94V0 Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount One Piece Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP TEST ASSY V0
