1-480701-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L GRAY Power to the Board CAP HOUSE 3 POS GRAY UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG GRY |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Gray | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 灰色 | 本体尺寸 | .76 – 2.29 mm [ .03 – .09 in ] |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Panel Mount, Free Hanging |
| 排数 | 3 | 封装形式 | Receptacle |
| 壳体材料 | Polyamide (PA) | 包装数量 | 1 |
| 面板安装类型 | 带有 | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 插头 | 典型触点布局 | 直插式 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housings |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号
1-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL
350766-1
te connectivity / amp
Conn Housing PL 3 POS 6.35mm ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-0 UNI-MATE 3 way white plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350766-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNL PLUG HSG
1-480700-2
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 RED Power to the Board PLUG HOUSE 3 POS RED UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 03P UMNL PLUG HSG RED
2-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS FREE HANG UNM-N-L Power to the Board 03P PLUG HSG F/H Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm Centerline3 PositionsSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG
770018-1
te connectivity / amp

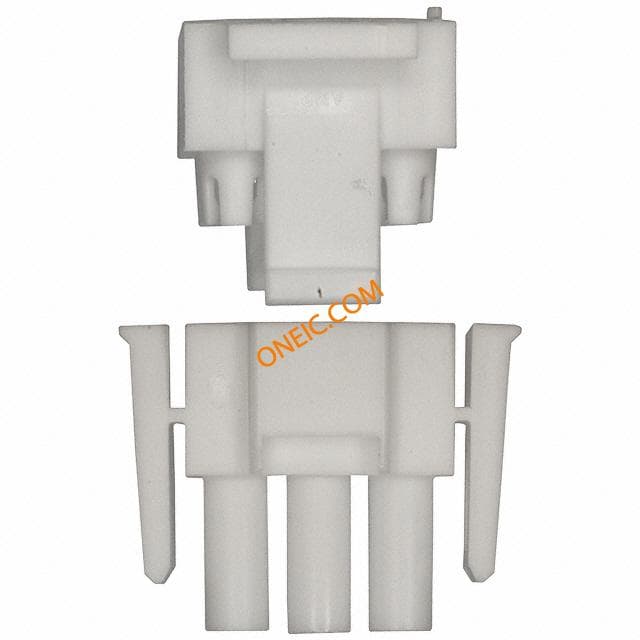

Conn Housing PL 3 POS 6.35mm Crimp ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,3Way Pin & Socket Connectors 3 POS IN LINE PLUG Conn Housing PL 3 POS 6.35mm Crimp ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;UniversalMATE-N-LOKII;3;Plug;Nylon;White;0.25in. Crimp housing Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 770018-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNLII IN-LNE PLUG HSG KIT
350766-4
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIVER MATE-N-LOK Universal mate-n-lok 3w Plug Connector Pin & Socket Connectors HSG PLG 1X03C F/P V0 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Conn;PlugHsg;3Pos;UnivMATE-N-LOK;White Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:3; 600V Crimp housing 6.35 mm Poles 3 MATE-N-LOK Universal, 350766-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 电缆安装 压接连接器外壳 03P UMNL PLUG HSG UL94V0
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350537-3
te connectivity / amp

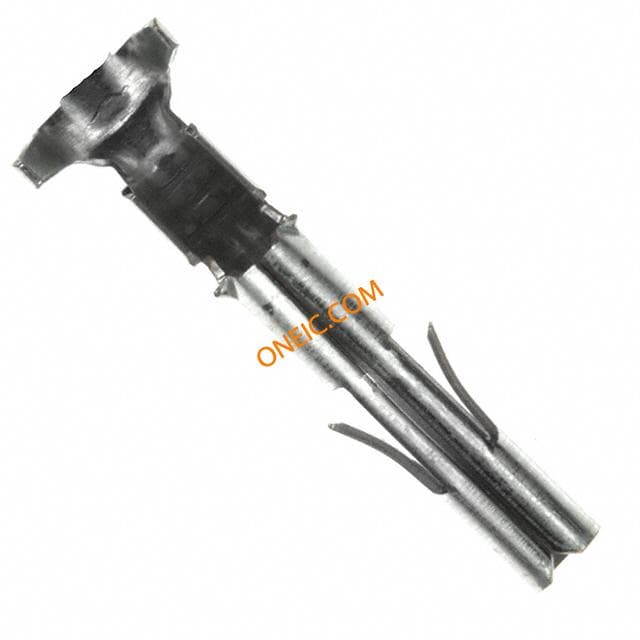

Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Power to the Board CRIMP PIN 20-14 REEL 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKSTRIP,UMNLSOK20-14.0125PTPPHBZ UMNL SOK 20-14 .0125 PTPPHBZ
350925-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 26-30AWG UNIV M-N-L Pin & Socket Connectors SOCKET 26-30 AWG .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SOK AUNI/PHBZ
1-480700-5
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-M-N-L GREEN Power to the Board PLUG HOUSE 3 POS GREEN UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = PlugContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 03P UMNL PLUG HSG GRN
1-480700-9
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 BLK Housing,plug,Mate-n-lok,3 Way,Black Jones Plugs & Sockets PLUG HOUSE 3 POS BLACK UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON Housing,plug,Mate-n-lok,3Way,Black Conn;PlugHsg;3Pos;UnivMATE-N-LOK;Black Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-9, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNL PLUG HSG BLK
1-480700-1
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 3 POS BROWN UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG BRN
1-480700-8
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-M-N-L GRAY Power to the Board 03P PLUG HSG GRY Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousing Gender = PlugWithout ContactsAccepts Contact Gender = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG GRY
350561-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.20-0.80mm² Power to the Board PIN CONTACT 24-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLPIN24-18.0126AU/NI/BR TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 24-18 .0126 AU/NI/BR
1-350766-9
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount One Piece CONN U-MNL PLUG 3POS 94V-0 BLK Pin & Socket Connectors 03P UMNL V0 PLUG HSG BLACK Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount One Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL V0 PLUG HSG BLACK
1-480700-3
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-M-N-L ORANGE Power to the Board PLUG HOUSE 3 POS ORANGE UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG ORNG
1-480700-4
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-M-N-L YELLOW Power to the Board PLUG HOUSE 3 POS YELLOW UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG YELL
1-350766-2
te connectivity / amp
Conn Housing PL 3 POS ST Cable Mount 03P UMNL VO HSG PLUG RED CONN U-MNL PLUG 3POS 94V-0 RED Pin & Socket Connectors 03P UMNL V0 PLUG HSG RED Conn Housing PL 3 POS ST Cable Mount Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL V0 PLUG HSG RED
350536-7
te connectivity / amp

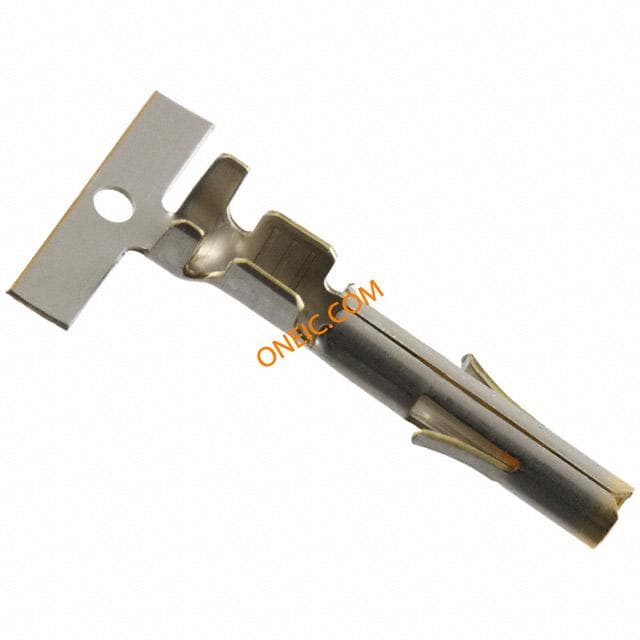

Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Contact Crimp Socket 20-14AWG Mate-n-Lok Power to the Board UMNL SOK 20-14 .0126 20000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG UMNLSOK20-14.0126AUNI/BR TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金触点 UMNL SOK 20-14 .0126 AUNI/BR
