点击放大查看

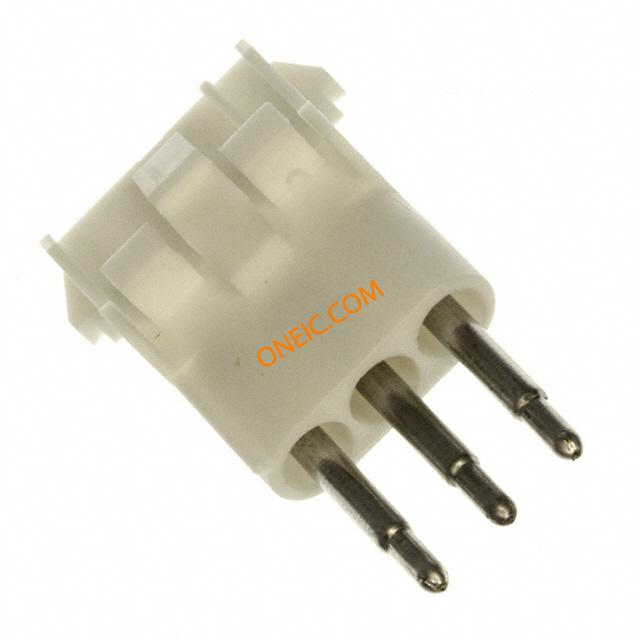

350849-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount One Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-MATE-N-LOK Pin & Socket Connectors 3P CAP TEST ASSY 94V0 Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount One Piece Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP TEST ASSY V0 |
| 分类 |
商业参数
| 其他名称 | A25732 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 30 – 10 |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging, Panel | 引脚数 | 3 |
| 排数 | 1 | 封装形式 | Receptacle |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 电缆端接方式 | Crimp | 端接样式 | Socket |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插座 |
| 接触件表面处理 - 配合 | 预镀锡 | 典型触点布局 | 直插式 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 产品子类型 | Receptacle Housings | 端口数 | 1 Port |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
