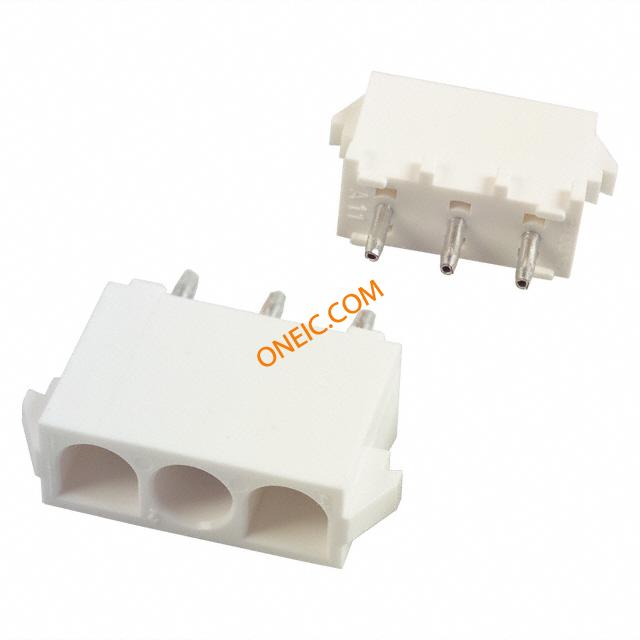

350789-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL PIN Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, 3 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;3;Nylon Socket; wire-wire/PCB; male; 6.35mm; PIN:3; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 最大额定电流 | 19A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 方向 | straight |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :6.35mm | 柱间距 | 6.35mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 锁定特性 | lock | 材料表面处理 | :- |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 100 | 连接器 - 电缆 | socket |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Through Hole Vertical | 位数 | 3 |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| SPG | 100 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 端口数 | 1 Port |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | :105°C | ||
相关型号
1-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL
350766-1
te connectivity / amp
Conn Housing PL 3 POS 6.35mm ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-0 UNI-MATE 3 way white plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350766-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNL PLUG HSG
350767-1
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS 94V-0 UNI-MATE 3 way white receptacle housing Pin & Socket Connectors 03P HSG. CAP. Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350767-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 母 压接连接器外壳 03P UMNL CAP HSG V0
1-480700-2
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 RED Power to the Board PLUG HOUSE 3 POS RED UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 03P UMNL PLUG HSG RED
2-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS FREE HANG UNM-N-L Power to the Board 03P PLUG HSG F/H Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm Centerline3 PositionsSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG
794272-1
te connectivity / amp

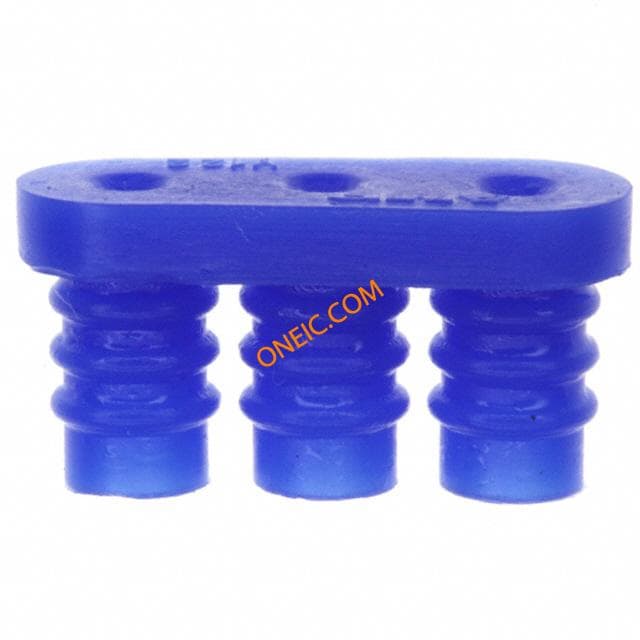

Connector Accessories Seal Protector 3 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN WIRE SEAL 3POS UMNL BLUE universal mate-n-lok 3 way wire seal Power to the Board SPLASH PROOF SEAL 3P Wire Connector Accessories Seal Protector 3 POS Silicon Rubber Blue Product Highlights:AccessoryUniversal MATE-N-LOK Product LineAccessory Type = Seal ProtectorIn-Line Contact LayoutNumber of Positions = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP WIRE SEAL, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;19;600;SiliconRubber;Blue Seal for wire; 6.35mm; PIN:3; Pin layout:1x3; Gasket: silicone Wire seal, 794272-1, TE Connectivity TE Connectivity MATE-N-LOK系列 蓝色 硅橡胶 电线密封 03P UMNL WIRE SEAL
