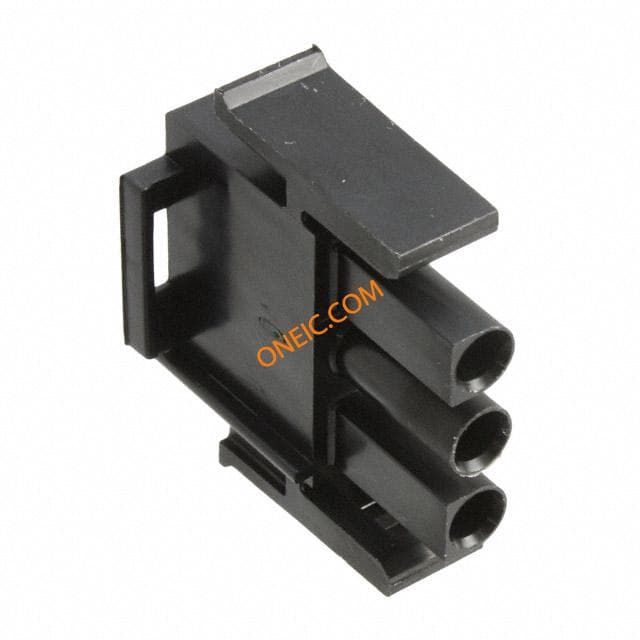

794900-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS Crimp ST Panel Mount Pin & Socket Connectors 03P UMNL HI TEMP CAP HSG CONN CAP HSG 3POS UMNL HI TEMP Conn;CapHsg;3Pos;UnivMATE-N-LOK;HITEMP 03P UMNL HI TEMP CAP HSG |
| 分类 |
商业参数
| 其他名称 | 7949001 | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | Black | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 本体尺寸 | .76 – 2.29 mm [ .76 – 2.29 in ] |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Latch Holder | 安装样式 | Free Hanging |
| 排数 | 3 | 封装形式 | Receptacle |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 插头 |
| 典型触点布局 | 直插式 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mate-N-Lok |
| 产品子类型 | Plug Housings | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
