点击放大查看

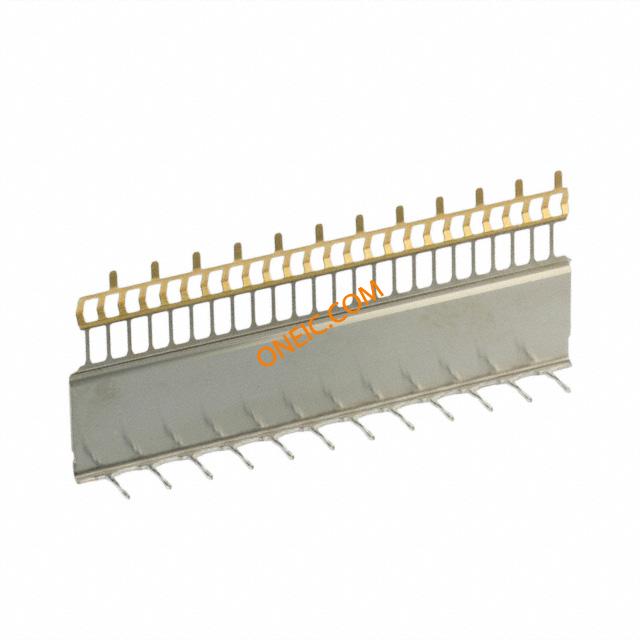

338110-2
| 制造商 | |
| 描述 | Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK SHLD.LOWER B Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 屏蔽类型 | Lower | ||
产品信息
| 备注 | Shields are supplied and fitted separately as required.; For use with Right Ang | 类型 | Shield |
| 连接器性别 | Receptacle | 系列 | :Z-PACK |
| 产品子类型 | Shield | 附件类型 | Ground Shield |
| 规格说明 | Type B, Lower | 模块/板类型 | No |
| 射频系列/标准 | 338110 | 有铅工艺兼容 | :No |
| 适用产品/相关产品 | PCB Mount Connectors | ||
环境参数
| 测试温度 | :No | ||
