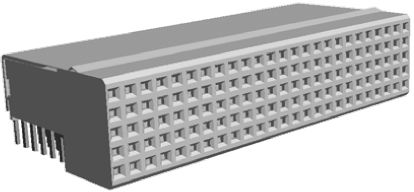

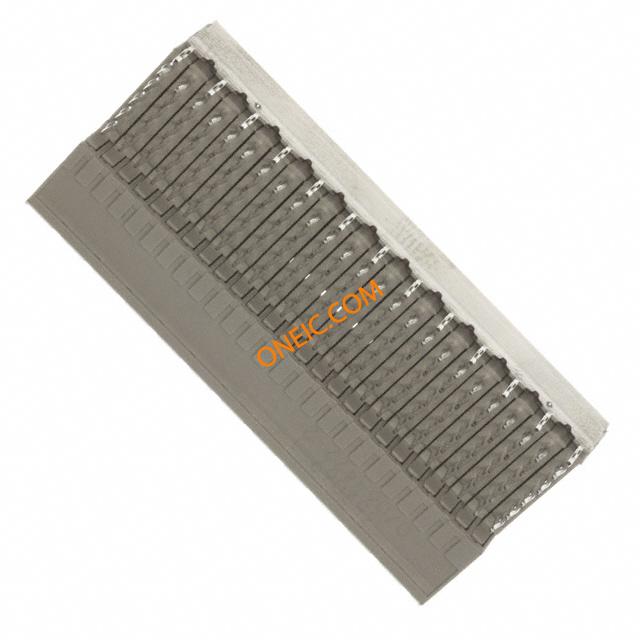

352069-1

制造商	TE Connectivity Ltd.
描述	Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HDR RECEPT 125 POS RANG 2MM Z-Pack,Header,Rcp,Type B,r/a,125way Hard Metric Connectors Z-PACK/B F-HDR.125P Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/BF-HDR.125P TE Connectivity Z-PACK HM 系列 2mm 节距 125 路直角 5 排母背板连接器, 焊接端子, 1.5A Z-PACK/B F-HDR.125P
分类	连接器解决方案背板连接器背板连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

其他名称	3520691	产品类别	Hard Metric Connectors
标准包装数量	Rail / Tube	工厂包装数量	11

合规参数

RoHS	Contains lead / RoHS non-compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS/Not ELV Compliant	材料阻燃等级	UL 94V-0

电气参数

串扰	Standard	接口	2mm HM
额定电压	500V	数据速率（最大）	≤1
最大额定电流	1.5A

机械参数

间距	2 mm	长度	50
包装方式	Tube	屏蔽	是
方向	直角	屏蔽类型	Ground Return Shielding
端接方式	Solder	触头类型	Short Tail
极化	Multi-Purpose Center	外壳颜色	Gray
安装类型	Through Hole	连接器类型	Type B, 25 Column
接触镀层	Gold Over Nickel	触点时序	否
安装样式	Through Hole	排数	5
端子样式	信号	连接器样式	B 25
连接器用途	CompactPCI	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Polyester GF
总长度	50.00 [1.968]	包装数量	11
面板安装类型	直角	端接排数	焊接
端接样式	Press Fit	配接方向	With
触点数	125	端接表面处理	Tin-Lead over Nickel
位数	125	柱体长度（配合）	3.71 [0.146]
接触镀层厚度	30µin (0.76µm)	后壳材料及镀层	硬公制 B 型

产品信息

制造商	3.3	备注	Female connector with pre-installed shield.
类型	Hard Metric	连接器性别	Receptacle
系列	Z-Pack	产品特性	Upper Shield
制造商全称	AMP	产品子类型	Connector
控制器系列	否	模块/板类型	Yes
列数	25	加载位置数	All

环境参数

工作温度

-55°C ~ 125°C

文档与媒体

在线文档

352069-1?RQPN=352069-1

相关型号

352622-1

TE Connectivity / AMP

Hard Metric Connectors Z-PACK/B MALE HDR 159P 2MM HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 159POS TYPE B VERT

¥51.7616

详情

100669-1

te connectivity / amp

Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT GOLD 2MM Z-Pack,Header,Plug,Type B,vertical,175w Hard Metric Connectors Z-PACK M.CONN.175P Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACKM.CONN.175P. TE Connectivity Z-PACK HM 系列 2mm 节距 175 路直向 7 排公背板连接器, 按式端子, 1.5A

¥43.9280

详情

338110-2

te connectivity / amp

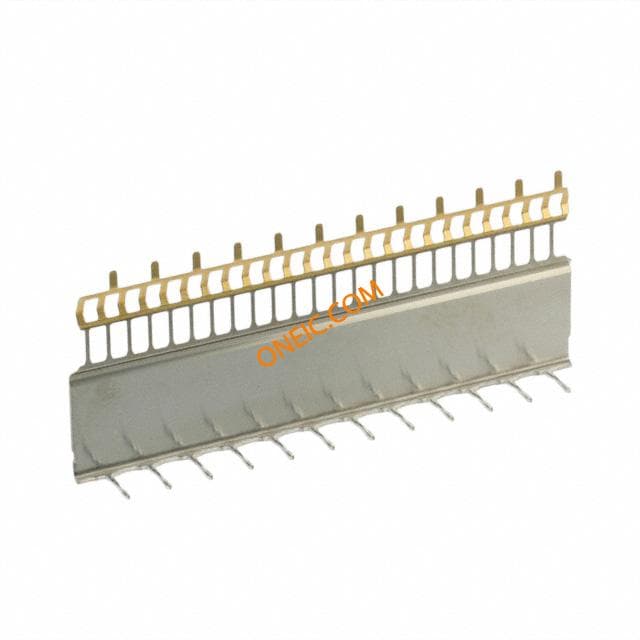

Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK SHLD.LOWER B Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD
