100624-1
| 制造商 | |
| 描述 | Hard Metric Connectors TYPE B REC 125 SHLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 125POS R/A GOLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| 分类 |
商业参数
| 标准包装规格 | 11 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | 308 | 工厂包装数量 | 11 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Reduced | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 0.079" (2.00mm) | 包装方式 | Tube |
| 屏蔽类型 | Ground Return Shielding | 端接方式 | Press-Fit |
| 触头类型 | Short Tail | 外壳颜色 | Gray |
| 安装类型 | Right Angle | 外壳镀层 | Gold Flash over Nickel |
| 连接器类型 | Type B, 25 Column | 接触镀层 | Gold (30) over Nickel (50) |
| 安装样式 | Through Hole | 排数 | 5 |
| 连接器样式 | B 25 | 连接器用途 | Backplane |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 125 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 125 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | B | 连接器性别 | Receptacle |
| 系列 | Z-Pack | 产品特性 | Upper Shield |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 模块/板类型 | No | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
100669-1
te connectivity / amp
Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT GOLD 2MM Z-Pack,Header,Plug,Type B,vertical,175w Hard Metric Connectors Z-PACK M.CONN.175P Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACKM.CONN.175P. TE Connectivity Z-PACK HM 系列 2mm 节距 175 路 直向 7 排 公 背板连接器, 按式端子, 1.5A
338108-2
te connectivity / amp
Connector Accessories Ground Return Receptacle Shield Hard Metric Connectors Z-PACK SHLD.LOWER A 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) CONN HARDWARE LOWERSHIELD 110POS Connector Accessories Ground Return Receptacle Shield Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD Z-PACK SHLD.LOWER A
338110-2
te connectivity / amp

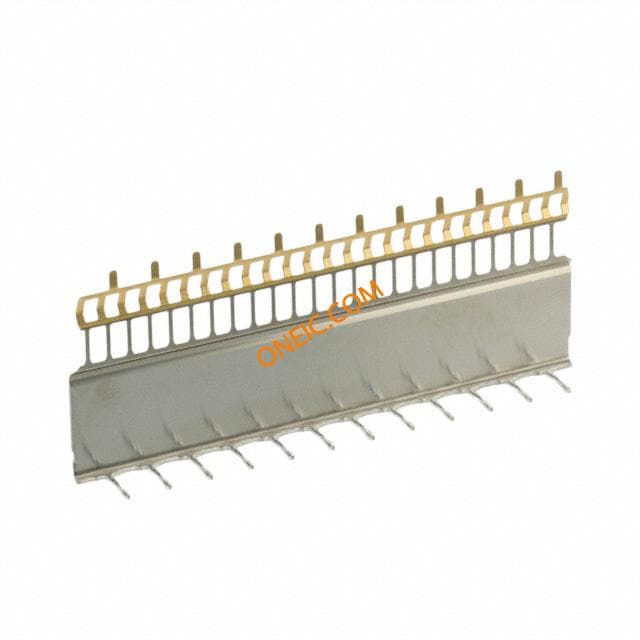

Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK SHLD.LOWER B Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD
