点击放大查看

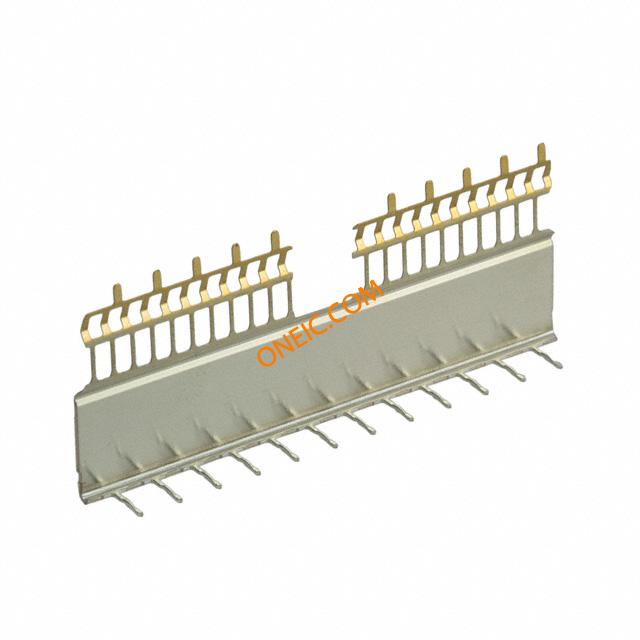

338108-2

制造商	TE Connectivity Ltd.
描述	Connector Accessories Ground Return Receptacle Shield Hard Metric Connectors Z-PACK SHLD.LOWER A 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) CONN HARDWARE LOWERSHIELD 110POS Connector Accessories Ground Return Receptacle Shield Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD Z-PACK SHLD.LOWER A
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

产品类别	Hard Metric Connectors	标准包装数量	Trays
工厂包装数量	100

合规参数

RoHS	RoHS Compliant By Exemption	海关税号	85366930
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS/Not ELV Compliant

机械参数

间距	4 mm	高度	1.3 mm
重量	0	包装方式	Tray
屏蔽类型	Lower	接触镀层	Gold
安装样式	Through Hole	排数	6
总长度	49.9 mm	端接样式	Press Fit

产品信息

备注	Shields are supplied and fitted separately as required.; For use with Right Ang	类型	Receptacle Shield
连接器性别	Receptacle	系列	Z-Pack
产品子类型	Ground Plates	附件类型	Ground Shield
规格说明	Type A, Lower	模块/板类型	No
射频系列/标准	338108	有铅工艺兼容	:No
适用产品/相关产品	PCB Mount Connectors

环境参数

机械寿命

Obsolete

测试温度

:No

相关型号

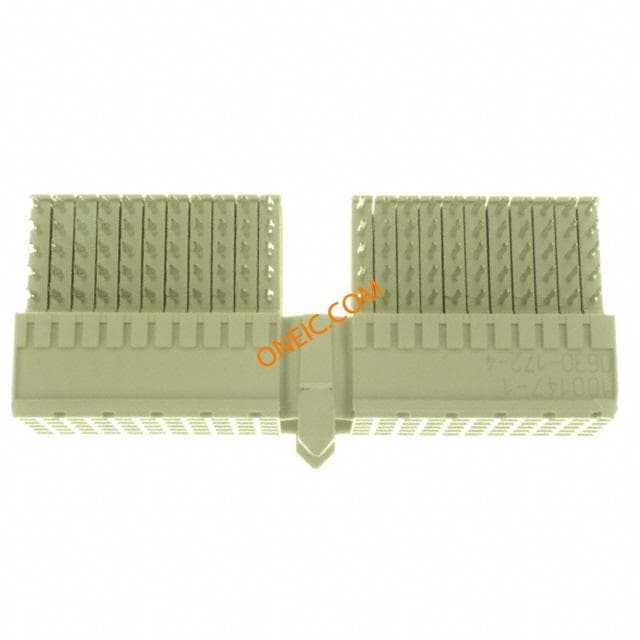

100147-9
