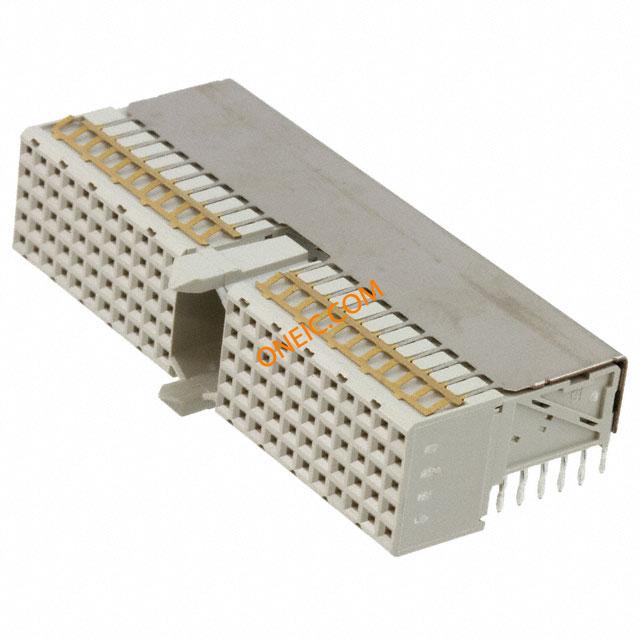

1746992-1
| 制造商 | |
| 描述 | Conn Hard Metric RCP 110 POS 2mm Press Fit RA Thru-Hole Z-PACK 2mm HM FEMALE CONN TYPE A W/SHIELD,Z-PA FEMALE CONNECTOR TYPE A WITH SHIELD,Z-PA FEMALE CONNECTOR TYPE A WITH SHIELD,Z-PA Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| 分类 |
商业参数
| 标准包装规格 | 11 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Reduced | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 长度 | 49.9 |
| 包装方式 | Tube | 屏蔽类型 | Upper |
| 端接方式 | Press Fit | 触头类型 | Press Fit |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Connector Assembly | 接触镀层 | Gold |
| 排数 | 6 | 连接器样式 | Receptacle |
| 连接器用途 | Backplane | 屏蔽材料 | Phosphor bronze |
| 壳体材料 | Polyester GF | 主要材料 | Phosphor Bronze |
| 配接方向 | Multi-Purpose Center | 触点数 | 110 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 110 |
| 柱体长度（配合） | 3.3 | 配接堆叠高度 | With |
| 典型触点布局 | ACTION PIN Post | 接触镀层厚度 | 30µin (0.76µm) |
| 触点材料 - 配合 | Gold (30) | ||
产品信息
| 类型 | Hard Metric | 产品特性 | Upper Shield |
| 产品子类型 | Connector | 模块/板类型 | No |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
