点击放大查看

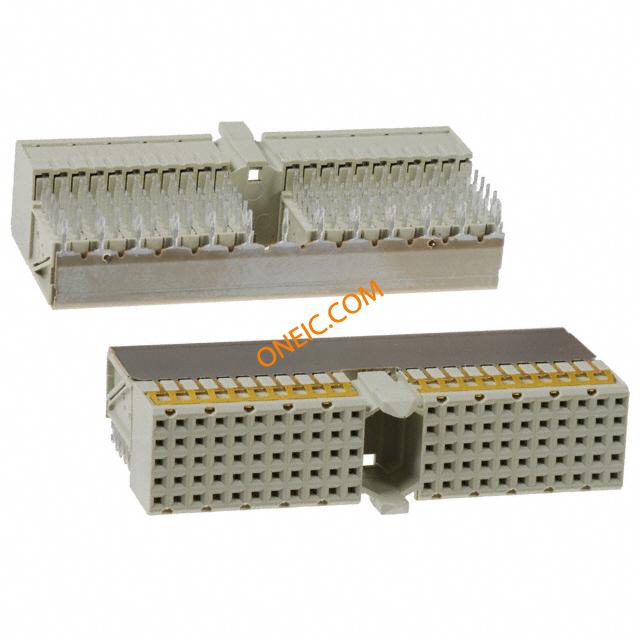

1213504
| 制造商 | |
| 描述 | CONN 2MM HM RCPT 110POS R/A GOLD |
| 分类 |
商业参数
| 标准包装数量 | 11 | ||
电气参数
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 0.079" (2.00mm) | 包装方式 | Tube |
| 端接方式 | Press-Fit | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 排数 | 5 | 连接器样式 | A 22 |
| 连接器用途 | CompactPCI J1/J4 | 位数 | 110 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 产品特性 | Upper Shield | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号

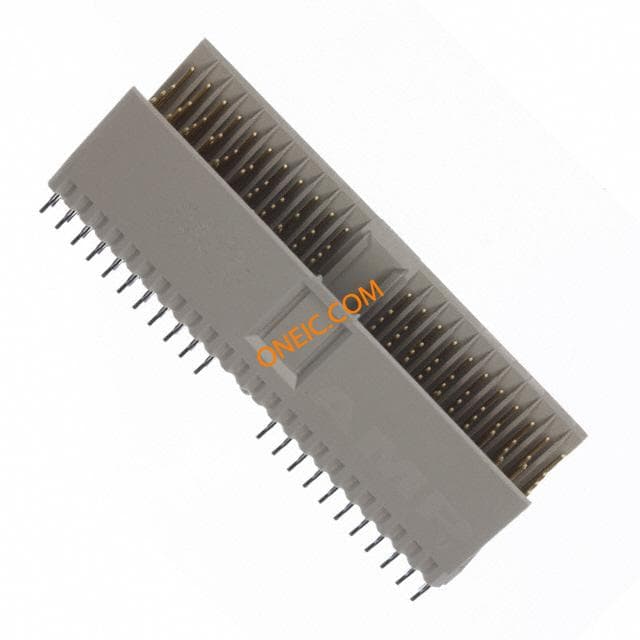

352332-1
