100145-1
| 制造商 | |

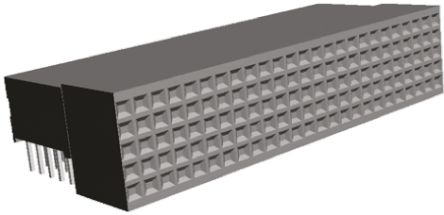

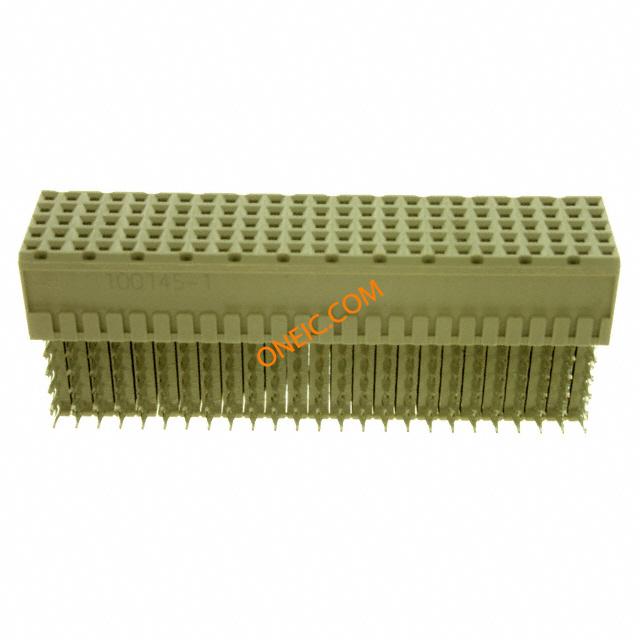

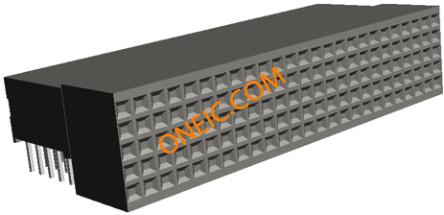

| 描述 | Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT 125POS RTANG GOLD 2MM Receptacle 125 way pcb 2mm Z-Pack Hard Metric Connectors Z-PACK/B F-HDR 125P Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR, RECEPTACLE, 2MM, R/A, 125WAY Z-PACK2MMHMRCCASY,Z-PACK/BF-HDR.125P TE Connectivity Z-PACK HM 系列 2mm 节距 125 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A Z-PACK/B F-HDR.125P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 接触电阻 | 20 mohm |
| 最大额定电流 | 1.5A | 最小供电电压 | 500VAC |
机械参数
| 深度 | 20.2 mm | 间距 | 2 mm |
| 高度 | 11.4 mm | 重量 | 0.02 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Solder | 触头类型 | Short Tail |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type B, 25 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | B 25 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT - GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 125 |
| 端接表面处理 | Tin-Lead over Nickel | 接触件端接 | :Press Fit Right Angle |
| 位数 | 125 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 连接器性别 | Receptacle |
| 系列 | Z-PACK | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
