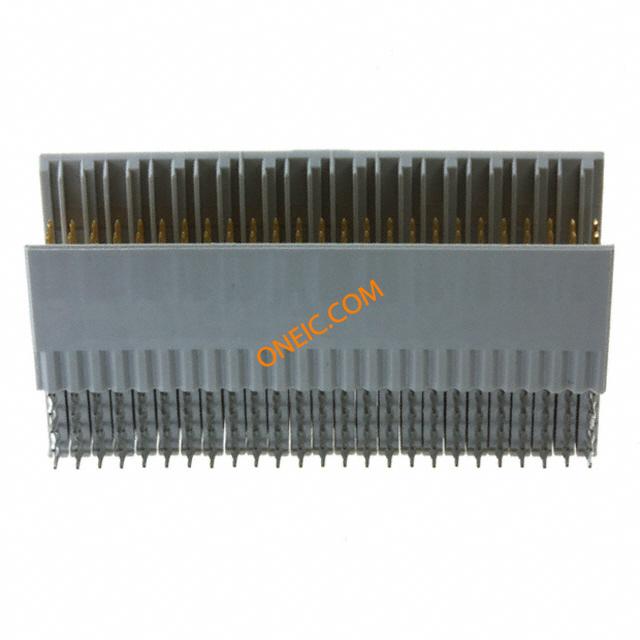

106014-1

制造商	TE Connectivity Ltd.
描述	Conn Hard Metric PL 125 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 125 POS 2MM PCB Hard Metric Connectors 2MM TYPE B M Z-PACK Conn Hard Metric PL 125 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 125POS Z-PACK/B RAMH.125P.
分类	连接器解决方案背板连接器背板连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

其他名称	1060141	产品类别	Hard Metric Connectors
标准包装数量	Trays	工厂包装数量	11

合规参数

RoHS	Contains lead / RoHS non-compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS/Not ELV Compliant
材料阻燃等级	UL 94V-0

电气参数

串扰	Standard	接口	2mm HM
额定电压	500V	最大额定电流	1.5A

机械参数

深度	26.8 mm	间距	2 mm
高度	17.2 mm	重量	0
包装方式	Tray	屏蔽类型	No
端接方式	Solder	触头类型	Short Tail
柱间距	:2mm	外壳颜色	Gray
安装类型	Through Hole	连接器类型	Type B, 25 Column
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	5	连接器样式	B 25
连接器用途	Backplane	触头材料	Phosphor Bronze
前部连接器	Level 1	壳体材料	Polyester GF
总长度	50.00 [1.968]	端接样式	Press Fit
配接方向	Without	触点数	125
端接表面处理	Tin-Lead over Nickel	接触件端接	:Press Fit Right Angle
位数	125	柱体长度（配合）	3.71 [0.146]
接触镀层厚度	30µin (0.76µm)

产品信息

备注	Warning: Card extender male connectors should not be used with cable connectors	类型	Hard Metric
连接器性别	Plug	系列	Z-Pack
制造商全称	AMP	产品子类型	Connector
模块/板类型	No	加载位置数	All

环境参数

工作温度

-55°C ~ 125°C

文档与媒体

在线文档

106014-1?RQPN=106014-1

相关型号
