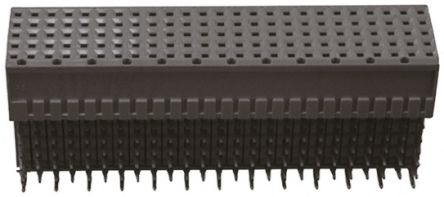

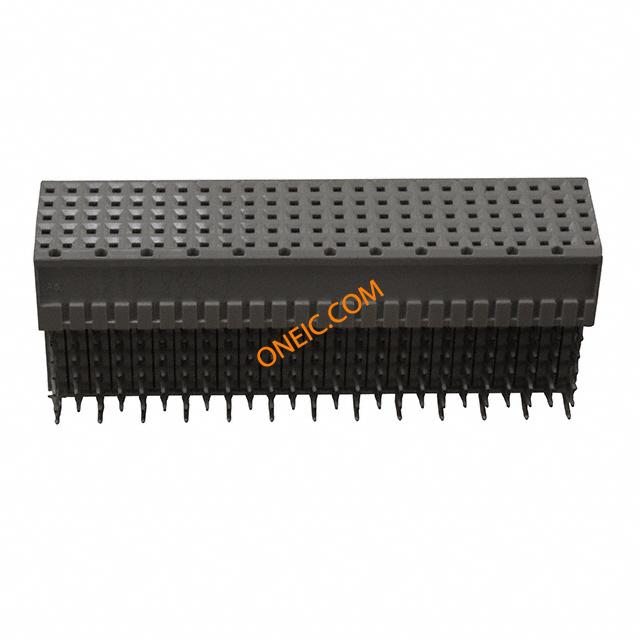

5352069-1
| 制造商 | |
| 描述 | Conn Hard Metric RCP 125 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 125POS RT ANG 2MM Hard Metric Connectors REC B/125P R/A B-PLANE HM Conn Hard Metric RCP 125 POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, RECEPTACLE 125POS TE Connectivity Z-PACK HM 系列 2mm 节距 125 路 直角 5 排 母 背板连接器, 按式端子 Z-PACK/B25 RAF 125P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85365005 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数

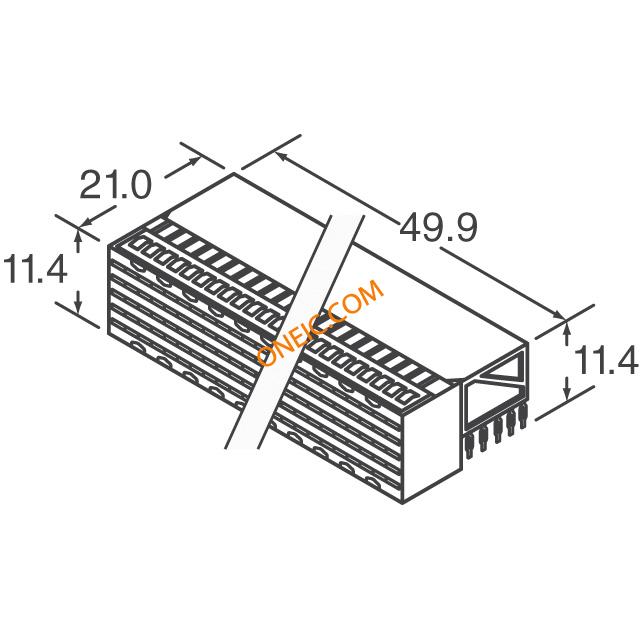

| 尺寸 | :1.968" | 深度 | 21 mm |
| 间距 | 2 mm | 高度 | 11.4 mm |
| 重量 | 0.002 | 包装方式 | Tube |
| 屏蔽类型 | Ground Return Shielding | 端接方式 | Press Fit |
| 触头类型 | Short Tail | 柱间距 | :2mm |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type B, 25 Column |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | B 25 |
| 连接器用途 | CompactPCI | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 50.00 [1.968] |
| 端接样式 | Pin | 配接方向 | With |
| 触点数 | 125 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 125 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Female connector with pre-installed shield. | 类型 | Hard Metric |
| 连接器性别 | RCP | 系列 | Z-Pack |
| 产品特性 | Upper Shield | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | Yes |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
