5352345-1
| 制造商 | |
| 描述 | Conn Hard Metric F 125 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 125POS TYPE B R/A Hard Metric Connectors Z-PACK/B25 RAF 125P 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B25 RAF 125P |
| 分类 |
商业参数
| 标准包装规格 | 11 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Reduced | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 典型衰减 | 标准 | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 长度 | 50 |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 灰色 | 屏蔽类型 | Ground Return Shielding |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 固定类型 | 是 | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 外壳镀层 | Gold Flash over Nickel | 连接器类型 | Type B, 25 Column |
| 接触镀层 | Gold Over Nickel | 排数 | 5 |
| 连接器样式 | B 25 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 屏蔽材料 | Phosphor bronze |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester GF |
| 总长度 | 50.00 [1.968] | 包装数量 | 11 |
| 面板安装类型 | 直角 | 端接样式 | 插针 |
| 配接方向 | With | 触点数 | 125 |
| 端接表面处理 | Tin over Nickel | 位数 | 125 |
| 柱体长度（配合） | 3.71 [0.146] | 典型触点布局 | ACTION PIN, Signal |
| 端子柱长度 | 3.7 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Hard Metric | 连接器性别 | Receptacle |
| 产品特性 | Upper Shield | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | Yes |
| 列数 | 25 | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
5106510-1
te connectivity / amp

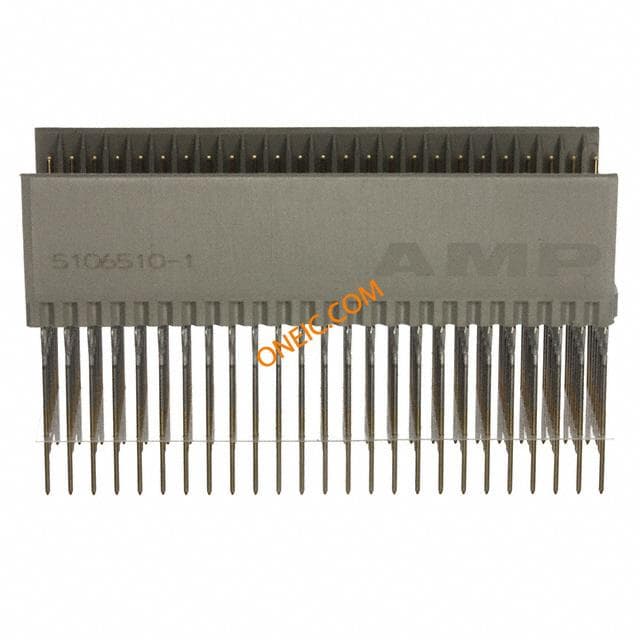

Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT 2MM Hard Metric Connectors PLUG 175POS STR GOLD 2MM Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM PIN HDR,TYPE B, 175P 7-R
338110-2
te connectivity / amp
Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish 2mm Hard Metric Contacts and Accessories (Z-PACK 2mm HM) Z-PACK SHLD.LOWER B Connector Accessories 2 mm Hard Metric Lower Shield Receptacle Phosphor Bronze Gold Over Nickel Finish Product Highlights:ShieldReceptacleNot CompactPCIShield Style = LowerShield Type = Ground Return ShieldingSearch Keywords:IEC 1076-4-101, high speed, open pin field, hybrid power, cabled power, cabled connector, mezzanine, CONNECTOR SHIELD
5100669-1
te connectivity / amp

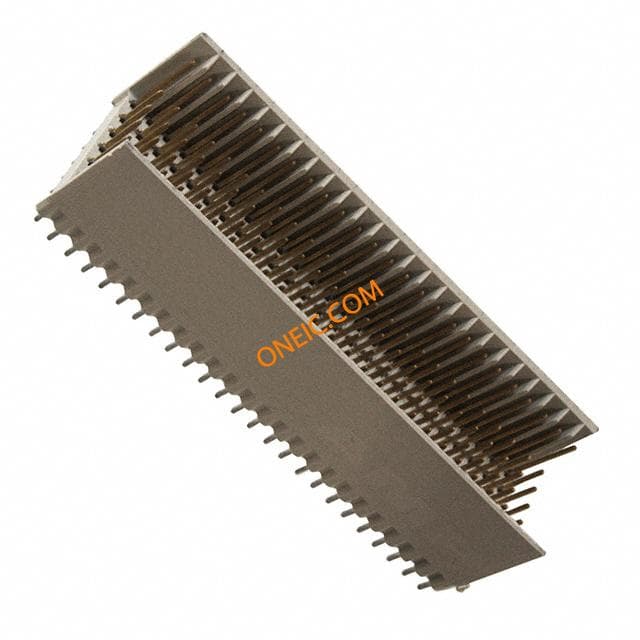

Conn Hard Metric M 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT 2MM 2mmPCB plug TypeB 5+2 x175 Hard Metric Connectors HDR B/175P VRT B-PLANE HM Conn Hard Metric M 175 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, HEADER, 175POS Z-PACKM.CONN.175P. 175 Position 5 + 2 Row Vertical PCB Mount Plug Connector Z-PACK M.CONN.175P.
