点击放大查看

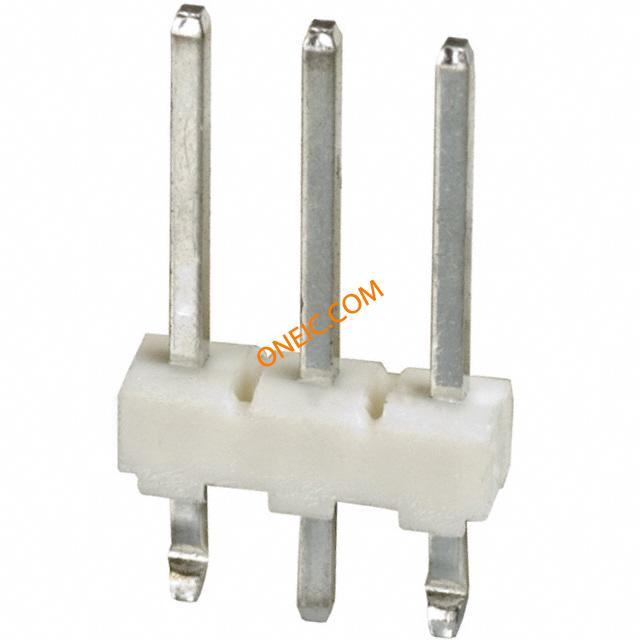

3-644695-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 TIN Headers & Wire Housings NARROW FLT HDR 3P Strt Post w/ret. leg Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 3WAY, 0.1IN 03P MTA100 STR HDR RETENTIVE |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 额定交流电压 | 250 |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Natural | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Male Pin | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | White |
| 安装类型 | Vertical | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 连接器用途 | Header | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 安装特性 | Without |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | Without | 触点数 | 3 |
| 接触件端接 | :Through Hole Vertical | 位数 | 3 |
| 后壳中断功能 | Without | 典型触点布局 | 2.54 [0.100] |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 150µin (3.81µm) |
| 恢复后小径 | Yes | ||
产品信息
| 备注 | 2 or 3 retentive leg's per header, depending upon number of positions. | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 系列 | MTA-100 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Printed Circuit Board | 应用细节 | Wire-to-Board |
| 加载位置数 | All | 跳过的位置数 | None |
