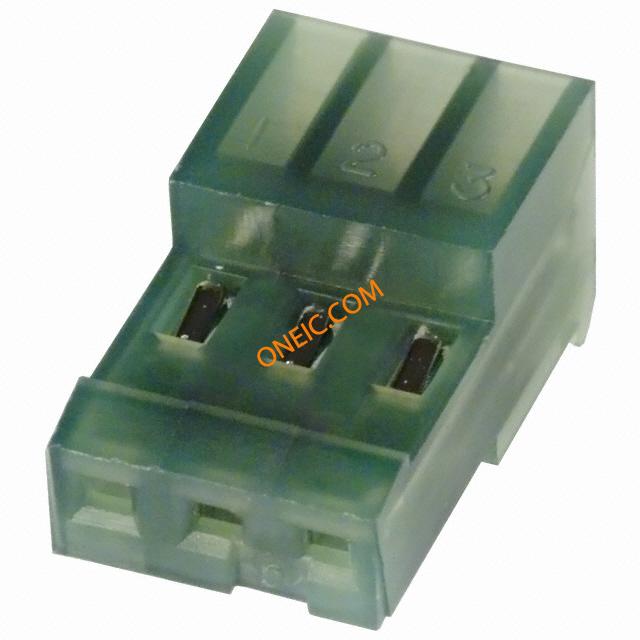

3-641537-3

点击放大查看

3-641537-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 03P MTA100 CONN ASSY LF 03P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A30832标准包装规格500
标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5

机械参数

颜色Green间距2.54 mm
长度7.62包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型分离式导线, 绞线导线线规28 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Green
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin Over Nickel触点时序Without
紧固类型Locking Ramp安装样式不带
排数1外壳材料（壳体）镍
连接器用途Receptacle高度（英寸）6.99
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式插座
配接方向Without触点数3
端接表面处理带有绝缘直径1.52 mm [ .06 in ]
位数3衬套/护套类型不带
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.08-0.09² [28]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注LED connectors are designed to mate with 0.36-0.51 [.014-.020] diameter posts o类型IDC Connector
连接器性别RCP产品特性Closed End
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
TE.Connect?C=1&M=BYPN&PID=379895&PN=3-641537-3&I=13
