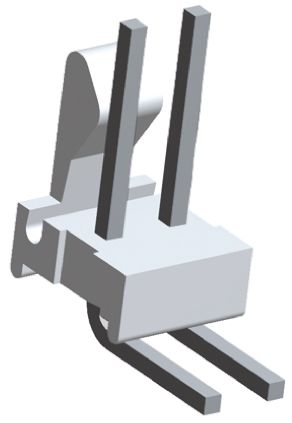

3-641216-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 3POS .100 30AU Headers & Wire Housings HDR 03P R/A F-LOCK Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM MTA-100HEADERGOLD,03PMTA100HDRASSYFL/RALF TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY FL/RA LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V |
| 开关功能 | Friction Lock | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 11.05 mm |
| 间距 | 2.54 mm | 高度 | 5.72 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 遮蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Male Pin | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | White |
| 安装类型 | Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器用途 | Header | 锁定特性 | Friction Lock |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 7.62 mm | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 3 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 3 | 后壳中断功能 | Without |
| 接触长度 - 配合 | 0.295" (7.49mm) | 触点材料 - 柱 | Copper Alloy |
| 端子柱长度 | 3.56 [0.140] | 接触镀层厚度 | 30µin (0.76µm) |
| 恢复后小径 | No | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-100 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Printed Circuit Board |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55C to 105C | ||
