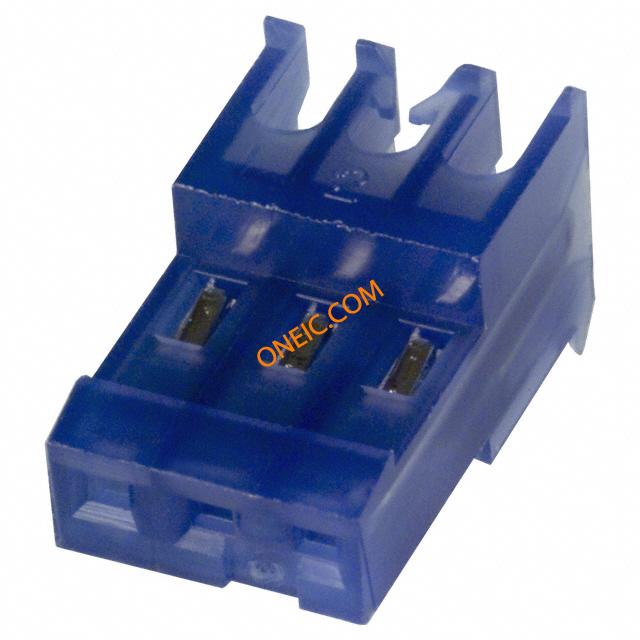

3-641655-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings 3P ASSY BLU Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU LF |
| 分类 |
商业参数
| 其他名称 | A30838 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 5000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 额定交流电压 | 250 | 连接器阻抗 | IDC |
| 最大额定电流 | 5 | ||
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 长度 | 7.62 | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 白色 | 出线方向 | 90° |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 26 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Blue |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Feed Thru |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体镀层 | Nickel |
| 连接器用途 | Receptacle | 高度（英寸） | 7.75 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 3 | 端接表面处理 | 带有 |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头和 MTA .100 IDC 柱形连接器 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 表面贴装焊盘尺寸 | Without |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.12-0.15² [26] | 静电放电屏蔽 | 带有 |
| 护套（绝缘）厚度 | .762 µm, 30 µin | ||
产品信息
| 备注 | LED connectors are designed to mate with 0.36-0.51 [.014-.020] diameter posts o | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | MTA-100 |
| 产品特性 | Feed Through | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号
640456-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 3P Straight Post tin Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, THT, VERTICAL, 2.54MM, 3WAY Header,FrictionLock;MTA-100;3;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:3; tinned; 2.54mm Pin header 3P, 640456-3, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY F/L SQ STR
640457-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 3P Right Angle Post tin Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.1", 3WAY Header,FrictionLock;MTA-100;3;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header angled 3P, 640457-3, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY SQ R/A F/L
3-644457-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 3POS .100 TIN Headers & Wire Housings NARROW FLT HDR 3P Right Angle Post Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:Header3 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 HDR ASSY R/A NARROW
644875-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS R/A .100 TIN Headers & Wire Housings 03P MTA100 HDR ASSY F/L SP BND MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:3 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 HDR ASSY F/L,SP BND
643961-2
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS STR .100 TIN Headers & Wire Housings 03P MTA100 HDR ASSY W/O#2 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 HDR ASSY W/O#2
3-641216-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 3POS .100 30AU Headers & Wire Housings HDR 03P R/A F-LOCK Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM MTA-100HEADERGOLD,03PMTA100HDRASSYFL/RALF TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY FL/RA LF
3-641213-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 30AU Header 3 way pin 2.54mm MTA-100 Headers & Wire Housings POLARIZED HEADER 3P Straight Post gold Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM Header3waypin2.54mmMTA-100 TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY PO/ST LF
3-647011-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG .100 GREEN
3-647008-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG .100 RED Headers & Wire Housings 03P MTA100 PSTD CONN ASSY LF 03P MTA100 PSTD CONN ASSY LF
3-647000-3
te connectivity / amp

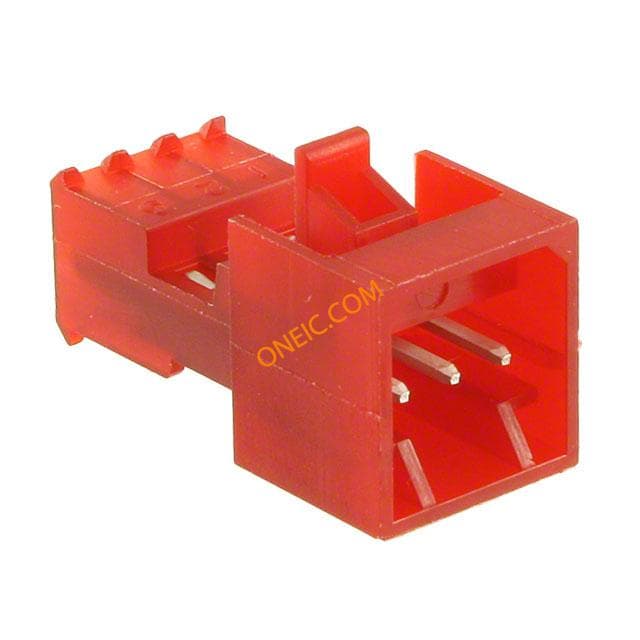

Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG .100 RED Headers & Wire Housings REC 03P C/E 24AWG POSTED Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 PSTD CONN ASSY LF
