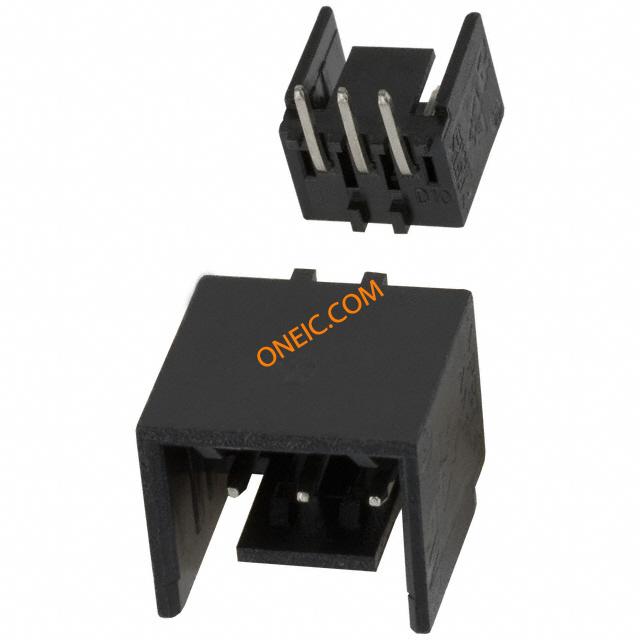

2-644488-3

点击放大查看

2-644488-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .100 TIN Headers & Wire Housings SHROUDED HEADER 3P Right Angle Post tin Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 SHRD HDR F/L R/A SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量3000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5 A

机械参数

颜色Black间距2.54 mm
高度10.41 mm [ .41 in ]长度9.75 mm [ .384 in ]
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色White
安装类型Right Angle连接器类型Header, Shrouded
接触镀层Matte Tin触点时序Without
紧固类型Friction Lock安装样式不带
排数1壳体镀层Tin
外壳材料（壳体）摩擦锁连接器用途Header
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester安装特性Without
包装数量500面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向Without
触点数3端接表面处理不带
位数3后壳中断功能Without

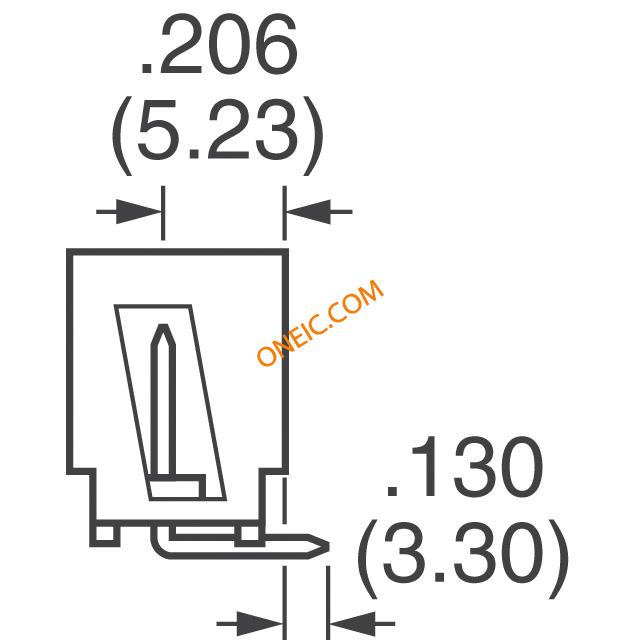

兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.3 mm [ .13 in ]
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.200" (5.08mm)
触点材料 - 柱Copper Alloy端子柱长度3.30 [0.130]
接触镀层厚度3.81 – 6.3 µm [ 150 – 250 µin ]恢复后小径No
静电放电屏蔽不带直角致动器长度Front
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Shrouded Header连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
