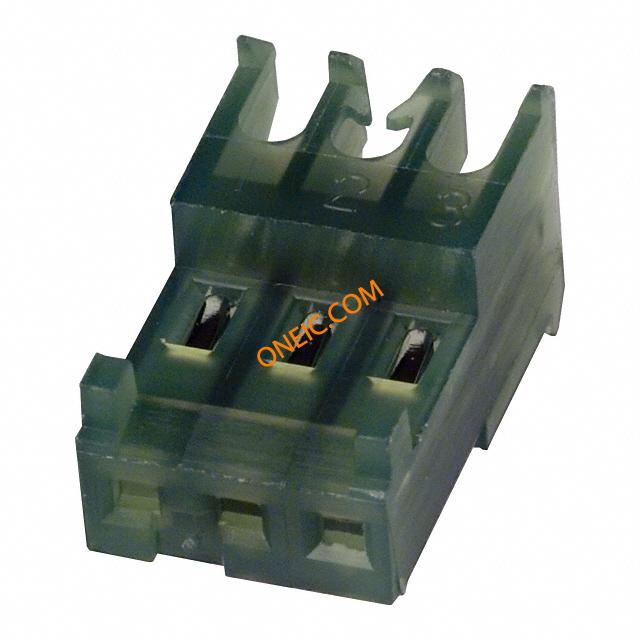

3-644565-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 Headers & Wire Housings 3 POS RECEPT 28 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY F/T 28AWG |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 额定交流电压 | 250 | 连接器阻抗 | IDC |
| 最大额定电流 | 5 | ||
机械参数
| 颜色 | Green | 间距 | 2.54 mm |
| 高度 | 7.75 mm [ .305 in ] | 长度 | 7.62 mm [ .3 in ] |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 白色 |
| 出线方向 | 90° | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 极化 | Polarizing Tab |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Green | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Feed Thru | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 壳体镀层 | Nickel | 外壳材料（壳体） | 标准 |
| 连接器用途 | Receptacle | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 安装特性 | Without | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 3 |
| 端接表面处理 | 带有 | 接触件端接 | Locking Lance |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.08-0.09² [28] |
| 静电放电屏蔽 | 带有 | 护套（绝缘）厚度 | .762 µm, 30 µin |
产品信息
| 备注 | 2 和 3 位置 MTA-100 柱形连接器无法配合带极化公端的 MTA-100 连接器, 肋之间的条纹可能会减少 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-100 |
| 产品特性 | Feed Through, Polarizing Key | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
