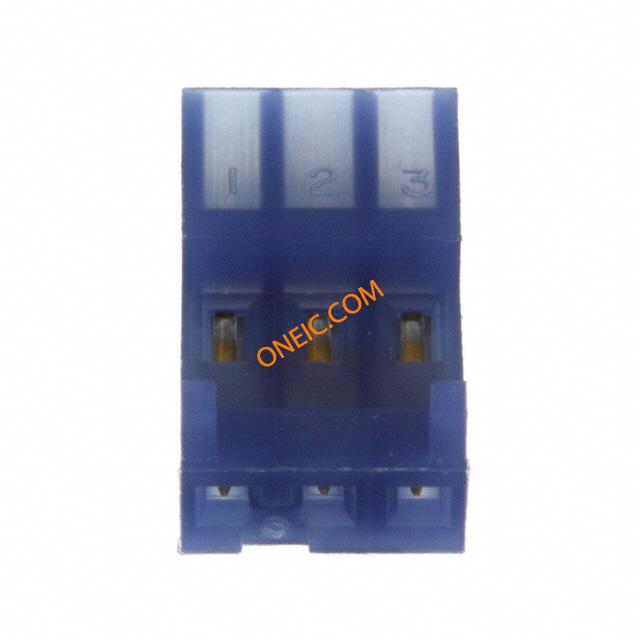

3-644043-3

点击放大查看

3-644043-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings REC 03P C/E 26AWG W/ TABS MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS BLU MTA-100 30AU Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量5000

合规参数

RoHSRoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5 A

机械参数

颜色Blue间距2.54 mm
高度6.99 mm [ .275 in ]长度7.62 mm [ .3 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规26端接方式IDT
触头类型Female Socket极化Polarizing Tab
第二连接器With外壳颜色Blue
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数3端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数3
兼容外壳尺寸（如TM-700等）MTA .100 头触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合金
典型触点布局2.54 [0.100]接触镀层厚度30µin (0.76µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]
静电放电屏蔽带有护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别RCP系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型Receptacles / Sockets - Housings
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
