3-647011-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG .100 GREEN
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-2

电气参数

额定交流电压

250

机械参数

颜色	Green	间距	2.54 mm
包装方式	Bulk	遮蔽类型	No
导线类型	Discrete or Ribbon Cable	导线线规	28 AWG
端接方式	IDT	触头类型	Male Pin
第二连接器	Without	外壳颜色	Green
安装类型	Free Hanging (In-Line)	连接器类型	Closed End
接触镀层	Gold Over Nickel	排数	1
连接器用途	Receptacle	触头材料	Copper Alloy
壳体材料	Nylon	安装特性	Without
面板安装类型	Without	电缆端接方式	IDC
配接方向	Without	触点数	3
位数	3	典型触点布局	2.54 [0.100]
接触镀层厚度	30µin (0.76µm)	恢复后小径	No
线规或范围 - mm²	0.08-0.09Â² [28]

产品信息

类型	IDC Connector	连接器性别	F
产品特性	Closed End	制造商全称	AMP
产品子类型	MTA-100 Connectors	连接类型	Wire
跳过的位置数	None

相关型号

3-640623-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 3P green tin 28 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY GRN LF

¥0.6392

详情

641537-3

TE Connectivity / AMP

Headers & Wire Housings CLOSED W/O TABS 3P LED green 28 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount

¥0.4964

详情

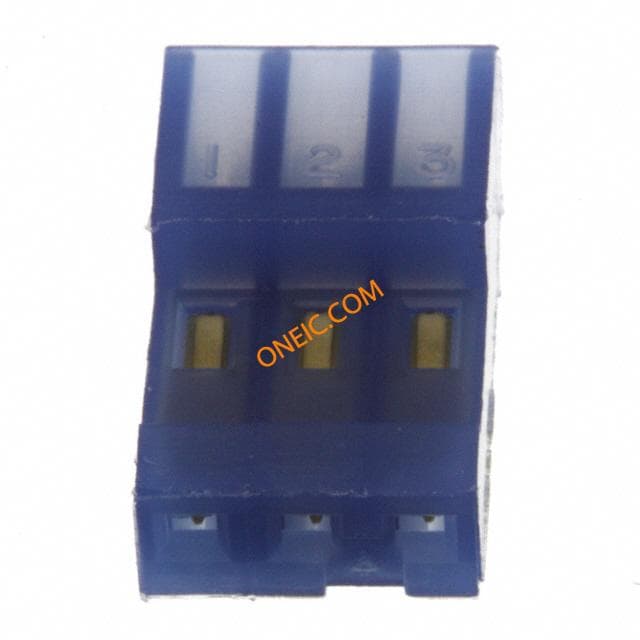

641239-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG BLU MTA-100 Headers & Wire Housings RECEPTACLE 3 POS 641239-3 Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU 30AU

¥2.7649

详情

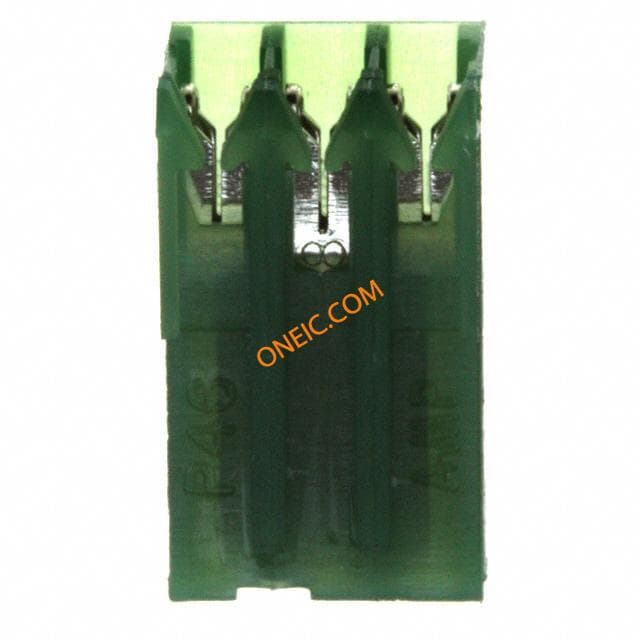

641193-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG GRN MTA-100 Headers & Wire Housings 03P RCPT GRN 15 AU Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY GRN 15AU

¥8.1600

详情

3-640622-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 3P blue tin 26 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY F/T BLU

¥0.6929

详情

641536-3

te connectivity / amp

Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 3P LED blue 26 AWG Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY 26AWG

¥0.4012

详情

暂无图片

641237-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG RED MTA-100 Headers & Wire Housings MTA .100 CONN 22-3

¥3.9018

详情

3-640620-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 Connector,FeedThru,3,0.100in. Headers & Wire Housings FEED THRU W/O TAB 3P red tin 22 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM Connector;FeedThru;3;0.100in.;IDCStandard 3 Position Feed Through Wire-to-Board 2.54 mm Centerline Receptacle Connector 03P MTA100 CONN ASSY F/T RED

¥0.6664

详情

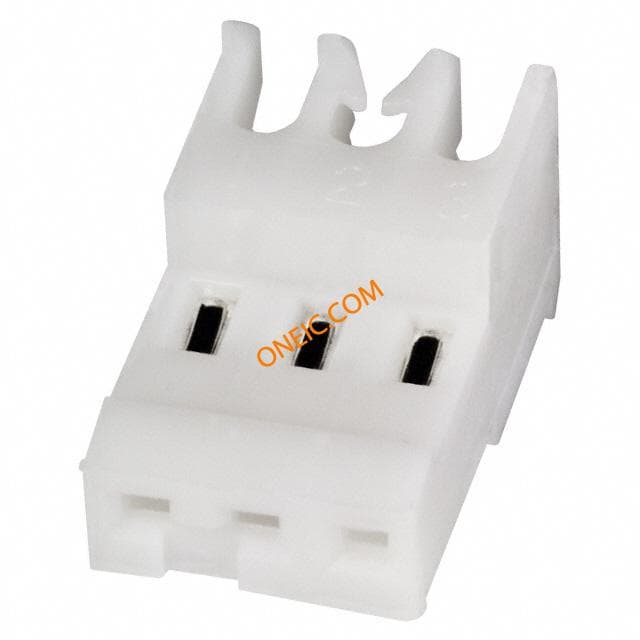

3-641654-3

te connectivity / amp

Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 24AWG MTA100 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY NATL LF

¥0.6188

详情

3-641655-3

te connectivity / amp

Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings 3P ASSY BLU Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU LF

¥0.6800

详情

641654-3

te connectivity / amp

¥0.6460

详情

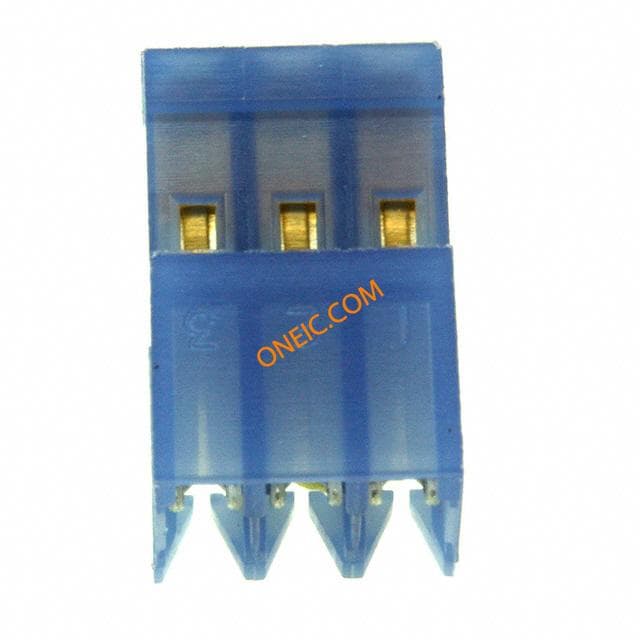

3-641239-3

te connectivity / amp

Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG BLU MTA-100 Headers & Wire Housings RCPT 3P 26 AWG BLU Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU LF

¥3.2232

详情

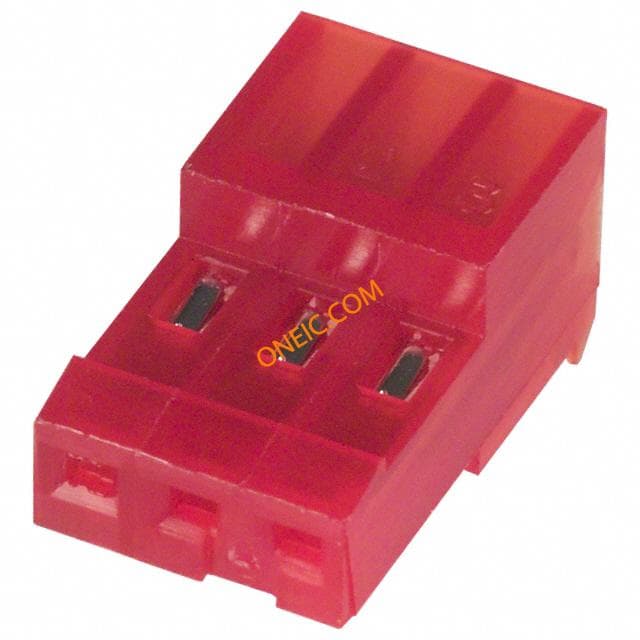

641534-3

te connectivity / amp

CONN WIRE TO BD RCP 3 POS 2.54MM IDT CBL MNT MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 3P LED red 22 AWG 03P MTA100 CONN ASSY 22AWG

¥0.4060

详情

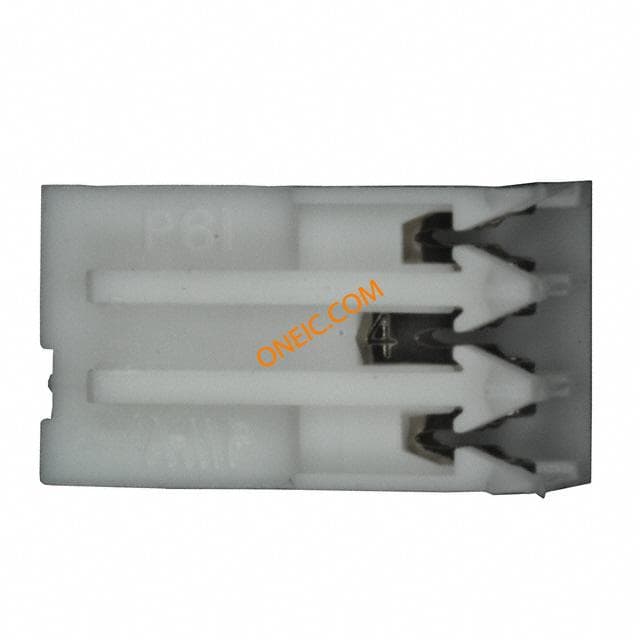

3-641535-3

te connectivity / amp

Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 24AWG MTA100 3-641535-3 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY LF

¥0.3876

详情

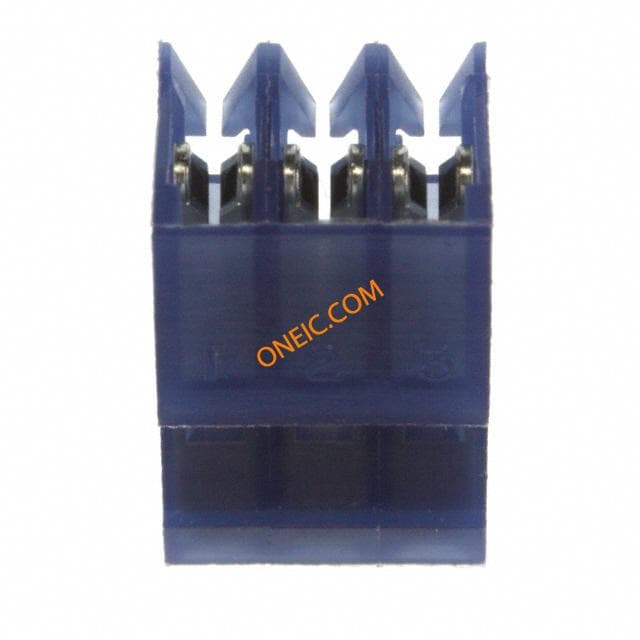

641192-3
