3-644456-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 TIN Headers & Wire Housings NARROW FLT HDR 3P Straight Post Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 3WAY, 0.1IN HEADERASSEMBLY,NARROW,MTA-100,3POSITION,STRAIGHT TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直 引脚管座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY (NARROW) |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 2.33 mm |
| 间距 | 2.54 mm | 高度 | 10.03 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 遮蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Male Pin | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | White |
| 安装类型 | Vertical | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 连接器用途 | Header |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 7.32 mm | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 3 | 接触件端接 | :Through Hole Vertical |
| 位数 | 3 | 后壳中断功能 | Without |
| 典型触点布局 | 2.54 [0.100] | 接触长度 - 配合 | 0.295" (7.49mm) |
| 接触镀层厚度 | 150µin (3.81µm) | 恢复后小径 | Yes |
产品信息
| 备注 | Headers without retentive legs are suitable for breakaway application | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 系列 | MTA-100 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Printed Circuit Board | 应用细节 | Wire-to-Board |
| 加载位置数 | All | 跳过的位置数 | None |
环境参数
| 工作温度 | -55C to 105C | ||
相关型号

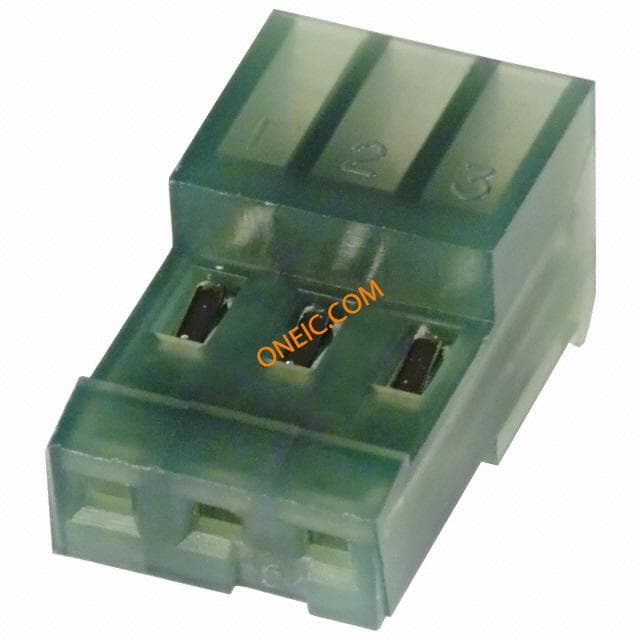

3-641537-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 03P MTA100 CONN ASSY LF 03P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
643498-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 03P MTA100 CONN ASSY 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA 100 CONNECT ASSEM 22AWG 3CIR Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY 22AWG
3-644043-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings REC 03P C/E 26AWG W/ TABS MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS BLU MTA-100 30AU Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY LF
3-647080-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount Tape Headers & Wire Housings 03P MTA100 CONN ASSY ON TAPE MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 24AWG .100 WHITE MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:3 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY ON TAPE
3-647480-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 03P MTA100 CONN ASSY W/TABS LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG .100 BLUE 03P MTA100 CONN ASSY W/TABS LF

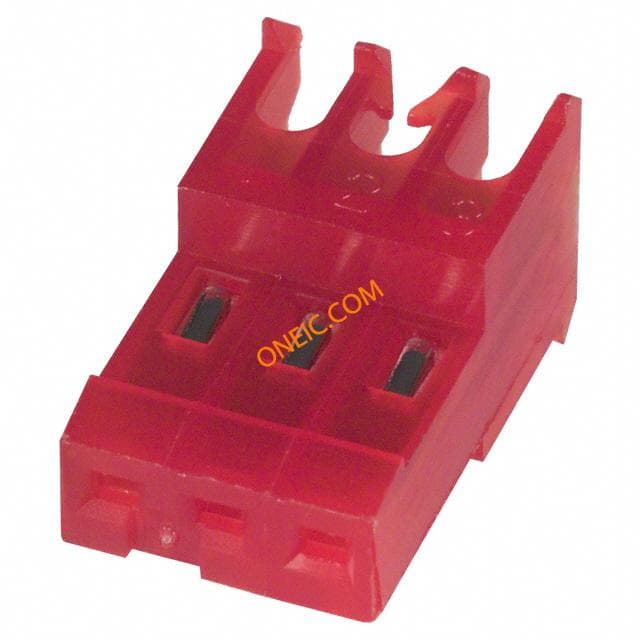

3-640620-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 Connector,FeedThru,3,0.100in. Headers & Wire Housings FEED THRU W/O TAB 3P red tin 22 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM Connector;FeedThru;3;0.100in.;IDCStandard 3 Position Feed Through Wire-to-Board 2.54 mm Centerline Receptacle Connector 03P MTA100 CONN ASSY F/T RED

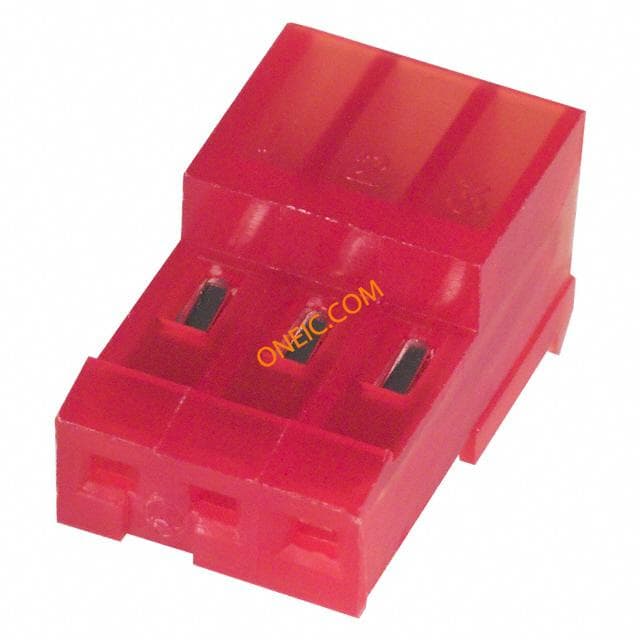

3-640440-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 3 Way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 3P red tin 22 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 3WAY WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,3pos. Connector: wire-board; MTA-100; plug; female; PIN:3; tinned; 2.54mm Cable socket, straight 3P, 3-640440-3, TE Connectivity TE Connectivity MTA-156 系列 3路 2.54mm节距 直角 电缆安装 母 IDC 连接器 03P MTA100 CONN ASSY 22AWG RED
3-644578-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG MTA-100 Headers & Wire Housings 03P MTA100 CONN ASSY BLK LF 03P MTA100 CONN ASSY BLK LF

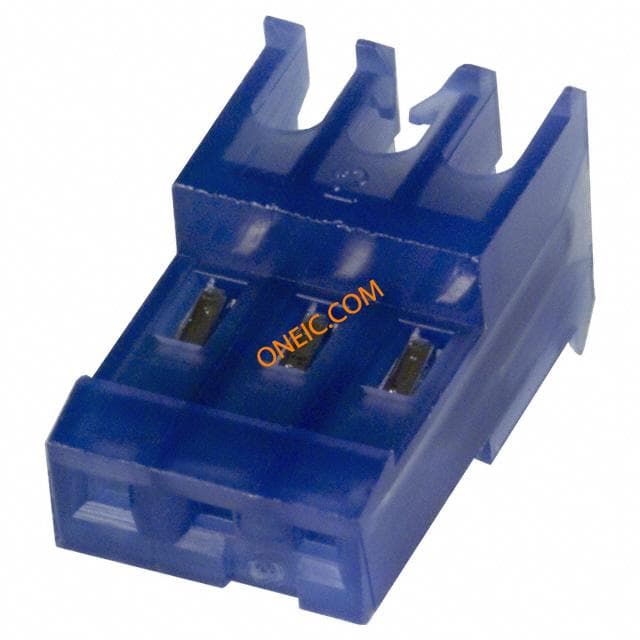

3-641655-3
