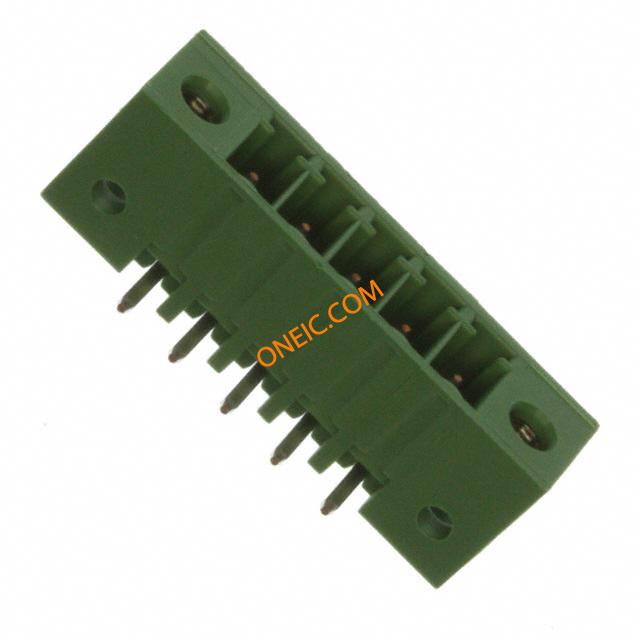

284539-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 5 POS 3.5mm Solder RA Thru-Hole Eurostyle Terminal Blocks TERM BLOCK HDR 5POS R/A 3.5MM Pluggable Terminal Blocks 5 POS TERMI-BLOK 900 W.S.F. 3 Conn Wire to Board HDR 5 POS 3.5mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5 POS TERMI-BLOK 900 W.S.F. 3, |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 11A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 最大额定电流 | 11 A | ||
机械参数
| 颜色 | Green | 间距 | 3.5 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.4 mm [ .134 in ] | 第二连接器 | 否 |
| 安装类型 | Through Hole | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 150 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Flange | 层数 | 1 |
| 级数 | 不带 | 互连系统 | 不带 |
| 每层位数 | 5 | 并排堆叠 | 否 |
