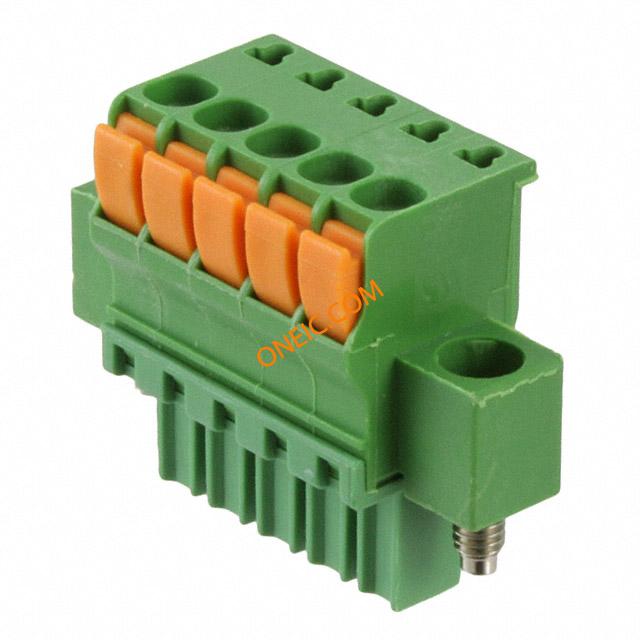

1986725-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Pluggable Terminal Blocks 3.5MM L/HAND 5 POS STR SPRNG PLG W/FLNG TERM BLOCK PLUG 5POS STR 3.5MM STR PLUG SPRING TYPE LH, FL 5P, 3.50 STR PLUG SPRING TYPE LH, FL 5P, 3.50 Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 100 |
| 标准包装数量 | 100 | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 9A | 电压 | 300V |
| 额定电压 | 300 V | 额定交流电压 | 300 |
| 最大额定电流 | 11 A | ||
机械参数
| 颜色 | Green | 间距 | 3.5 mm |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 顶部 | 引脚样式 | Top |
| 螺钉尺寸 | M2.5 | 导线线规 | 14 |
| 端接方式 | Screwless - Cage/Tension Clamp | 第二连接器 | 是 |
| 安装类型 | Straight | 连接器类型 | 插头 |
| 接触镀层 | Tin | 法兰特征 | 否 |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 插头进线方向 | 180° | 壳体材料 | Polyamide (PA) |
| 包装数量 | 400 | 端接样式 | Push-In |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Plug, Female Sockets | 按钮/帽颜色 | 橙色 |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 接触镀层厚度 | 1 – 3 |
| 线规或范围 - AWG | 30-14 | 线规或范围 - mm² | 30 |
产品信息
| 类型 | Plug, Left Hand | 产品特性 | Flange |
| 层数 | 1 | 每层位数 | 5 |
| 并排堆叠 | 否 | ||
环境参数
| 机械寿命 | New Product: New from this manufacturer. | ||
相关型号
1776654-5
te connectivity / amp
Conn Terminal Block HDR 5 POS 3.5mm Solder RA Thru-Hole 12A/Contact Fixed Terminal Blocks R/A Header 3.5mm Green Flanged TERM BLOCK HDR 5POS R/A 3.5MM

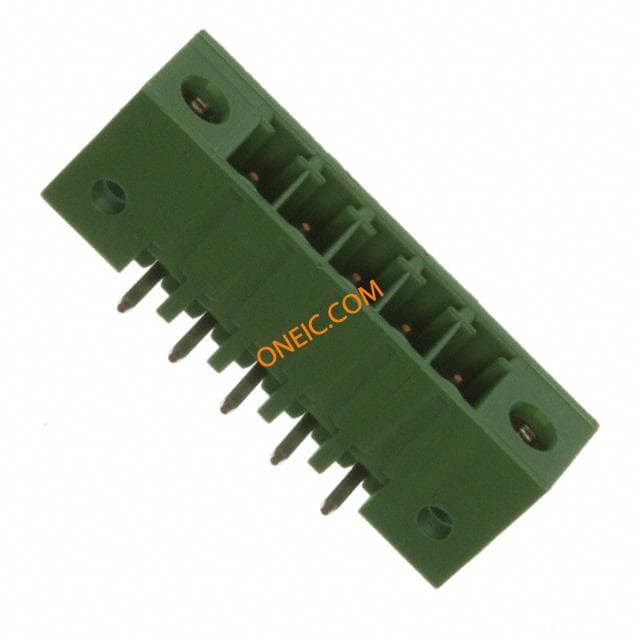

284539-5
