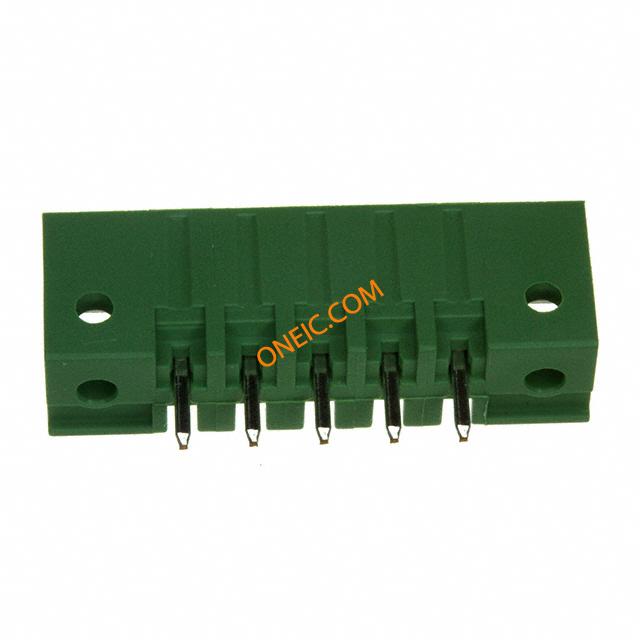

284516-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 5 POS 3.5mm Solder ST Thru-Hole Pluggable Terminal Blocks 5P TERMIBLOK HDR DIR C VITI Eurostyle Terminal Blocks TERM BLOCK HDR 5POS VERT 3.5MM Conn Wire to Board HDR 5 POS 3.5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5P TERMIBLOK HDR DIR C VITI |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 11A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 200 |
| 最大额定电流 | 11 A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 7.2 mm |
| 间距 | 3.5 mm | 高度 | 9.2 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.4 mm [ .134 in ] | 第二连接器 | 否 |
| 外壳颜色 | Green | 安装类型 | Vertical |
| 连接器类型 | 头 | 接触镀层 | Tin |
| 法兰特征 | 是 | 安装样式 | Through Hole |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 14 mm | 包装数量 | 150 |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Flange | 层数 | 1 |
| 互连系统 | 不带 | 每层位数 | 5 |
| 并排堆叠 | 否 | ||
文档与媒体
相关型号
1986725-5
TE Connectivity
Pluggable Terminal Blocks 3.5MM L/HAND 5 POS STR SPRNG PLG W/FLNG TERM BLOCK PLUG 5POS STR 3.5MM STR PLUG SPRING TYPE LH, FL 5P, 3.50 STR PLUG SPRING TYPE LH, FL 5P, 3.50 Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end
1776282-5
te connectivity / amp
Conn Terminal Block RCP 5 POS 3.5mm IDT RA Cable Mount 5A/Contact Fixed Terminal Blocks 5POS 3.5MMPIVOT BLK GREEN PBFR Terminal Block Connectors TERM BLOCK PLUG 5POS STR 3.5MM Wire to Board 5 Position 3.5 mm Pitch 24-22 AWG Euro Style Terminal Block
1986723-5
TE Connectivity
Pluggable Terminal Blocks 3.5MM R/HAND 5 POS STR SPRNG PLG W/FLNG TERM BLOCK PLUG 5POS STR 3.5MM STR PLUG SPRING TYPE RH 5P, 3.50mm STR PLUG SPRING TYPE RH 5P, 3.50mm Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

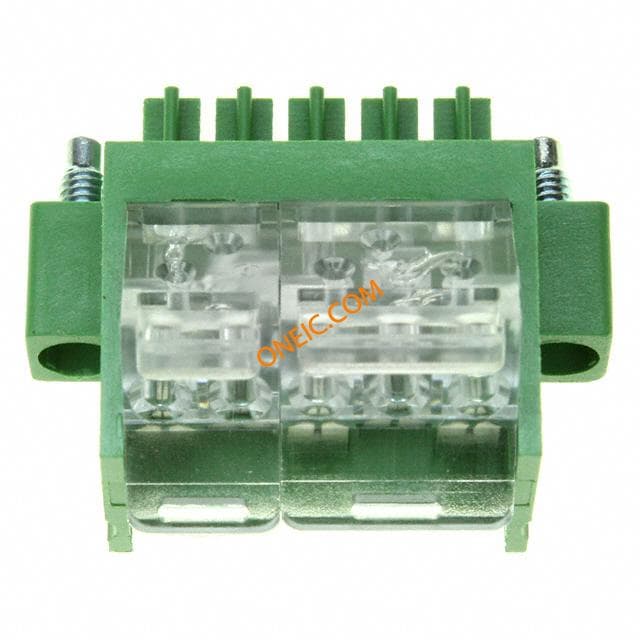

1776283-5
