点击放大查看

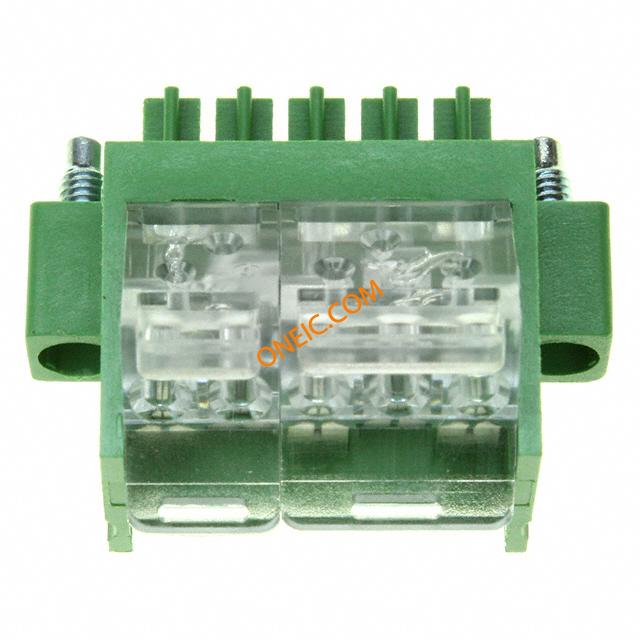

1776283-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block RCP 5 POS 3.5mm IDT RA Cable Mount 5A/Contact Terminal Block Connectors TERM BLOCK PLUG 5POS STR 3.5MM |
| 分类 |
商业参数
| 其他名称 | A98055 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 电流 | 5A | 电压 | 250V |
| 供电电压 | 250 | ||
机械参数
| 颜色 | Green | 间距 | 3.5 mm |
| 端部样式 | Without | 包装方式 | Bulk |
| 螺钉尺寸 | M2.5 | 导线线规 | 22-24 AWG |
| 端接方式 | IDT | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | Wire Receptacle |
| 接触镀层 | Tin over Nickel | 法兰特征 | With |
| 排数 | 1 | 螺丝材料 | Steel |
| 插头进线方向 | 180° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester (PBT) | 连接器间距 | Side |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Plug, Female Sockets | 中心触点材料 | 3.50 [0.137] |
| 螺钉材料 - 镀层 | Zinc | 线规或范围 - mm² | 0.20-0.40² [24-22] |
产品信息
| 类型 | Terminal Block | 连接器性别 | RCP |
| 产品特性 | Flange | 制造商全称 | Tyco Electronics |
| 产品子类型 | IDC PIVOT BLOCK | 侧面可堆叠 | No |
| 层数 | 1 | 堆叠数量 | Without |
| 互连系统 | Without | 每层位数 | 5 |
相关型号
284539-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.5mm Solder RA Thru-Hole Eurostyle Terminal Blocks TERM BLOCK HDR 5POS R/A 3.5MM Pluggable Terminal Blocks 5 POS TERMI-BLOK 900 W.S.F. 3 Conn Wire to Board HDR 5 POS 3.5mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5 POS TERMI-BLOK 900 W.S.F. 3,
796695-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 3.5mm Solder RA Thru-Hole Pluggable Terminal Blocks 5 POS TERMI-BLOK HDR 900 POLAR Terminal Block Connectors TERM BLOCK HDR 5POS R/A 3.5MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = BlueNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5 POS TERMI-BLOK HDR 900 POLAR
284516-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.5mm Solder ST Thru-Hole Pluggable Terminal Blocks 5P TERMIBLOK HDR DIR C VITI Eurostyle Terminal Blocks TERM BLOCK HDR 5POS VERT 3.5MM Conn Wire to Board HDR 5 POS 3.5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5P TERMIBLOK HDR DIR C VITI
796694-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 3.5mm Solder ST Thru-Hole Pluggable Terminal Blocks 5 POS TERMI-BLOK HDR DIR. POL Terminal Block Connectors TERM BLOCK HDR 5POS VERT 3.5MM Conn Shrouded Header HDR 5 POS 3.5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5 POS TERMI-BLOK HDR DIR. POL.
1776132-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 3.5mm Solder ST Thru-Hole Pluggable Terminal Blocks 5P TERMI-BLOK HDR, HIGH TEMP Terminal Block Connectors TERM BLOCK HDR 5POS VERT 3.5MM 5P TERMI-BLOK HDR,HIGH TEMP
1776136-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 3.5mm Solder RA Thru-Hole Pluggable Terminal Blocks 5P TERMI-BLOK, HIGH TEMP Terminal Block Connectors TERM BLOCK HDR 5POS R/A 3.5MM 5P TERMI-BLOK,HIGH TEMP
1776130-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 3.5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 5POS VERT 3.5MM
1776134-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.5mm Solder RA Thru-Hole Bulk Terminal Block Connectors TERM BLOCK HDR 5POS R/A 3.5MM 5P TERMI-BLOK HDR,HIGH TEMP
284515-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.5mm Solder ST Thru-Hole 5P TERMI-BLOK HDR DIR MODULE TERM BLOCK HDR 5POS VERT 3.5MM

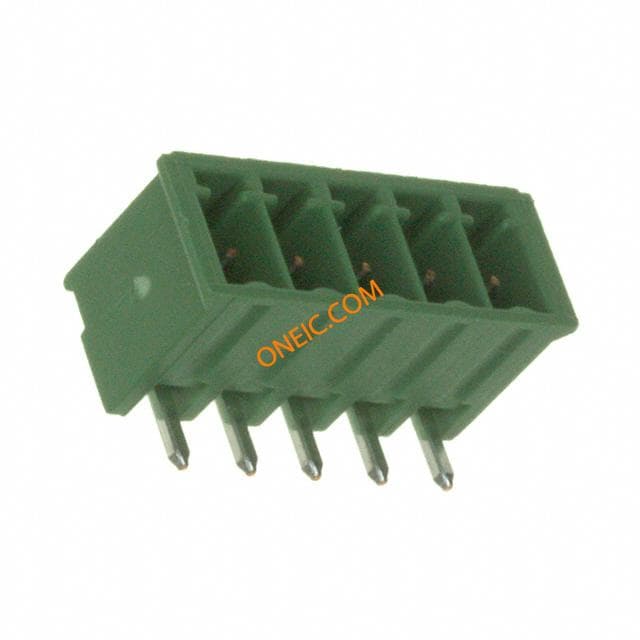

284512-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 3.5mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 5POS R/A 3.5MM Pluggable Terminal Blocks HEADER 5P R/A 3.5MM Conn Shrouded Header HDR 5 POS 3.5mm Solder RA Thru-Hole Product Highlights:ConnectorType of Connector = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, HEADER, 3.5MM, 5POS TE Connectivity Buchanan 系列 3.5mm 节距 5 路 母 绿色 直 PCB 管座, 面板安装, 焊接端接 5 POS TERMI-BLOK HDR 900 POLAR

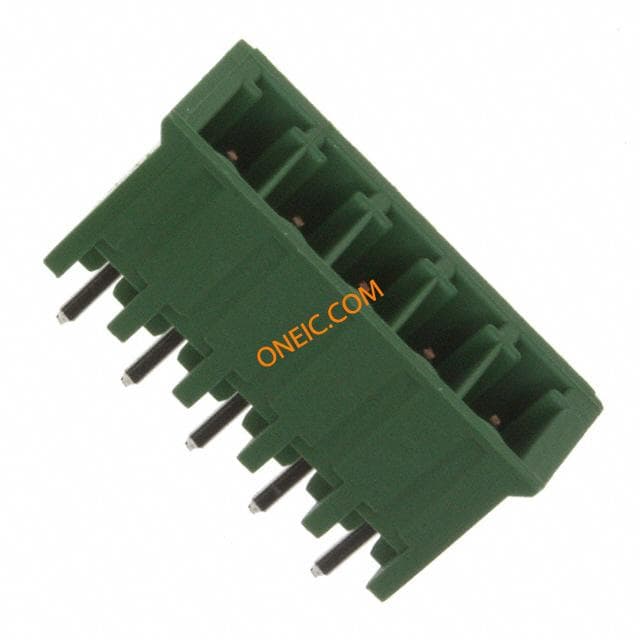

284514-5
