点击放大查看

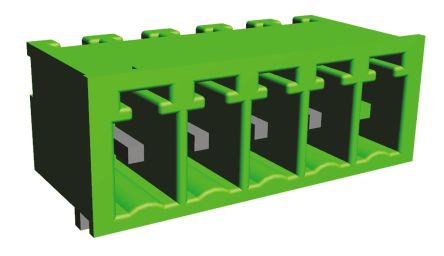

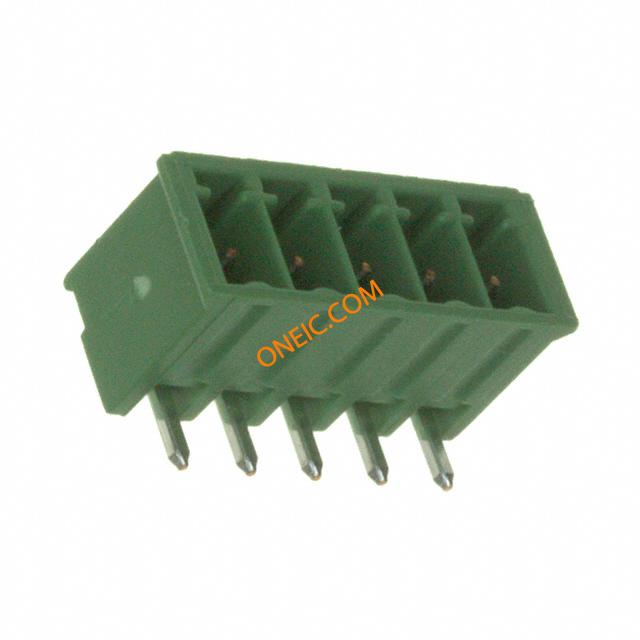

284512-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 3.5mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 5POS R/A 3.5MM Pluggable Terminal Blocks HEADER 5P R/A 3.5MM Conn Shrouded Header HDR 5 POS 3.5mm Solder RA Thru-Hole Product Highlights:ConnectorType of Connector = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, HEADER, 3.5MM, 5POS TE Connectivity Buchanan 系列 3.5mm 节距 5 路 母 绿色 直 PCB 管座, 面板安装, 焊接端接 5 POS TERMI-BLOK HDR 900 POLAR |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 11A | 电压 | 300V |
| 额定电压 | 300 VAC | 最大额定电流 | 11 A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Green | 深度 | 9.2 mm |
| 间距 | 3.5 mm | 高度 | 7.3 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Through Hole | 连接器类型 | :Terminal Block |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 19.5 mm |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | :- | 层数 | 1 |
| 每层位数 | 5 | ||
环境参数
| 工作温度 | -40C to 105C | ||
