点击放大查看

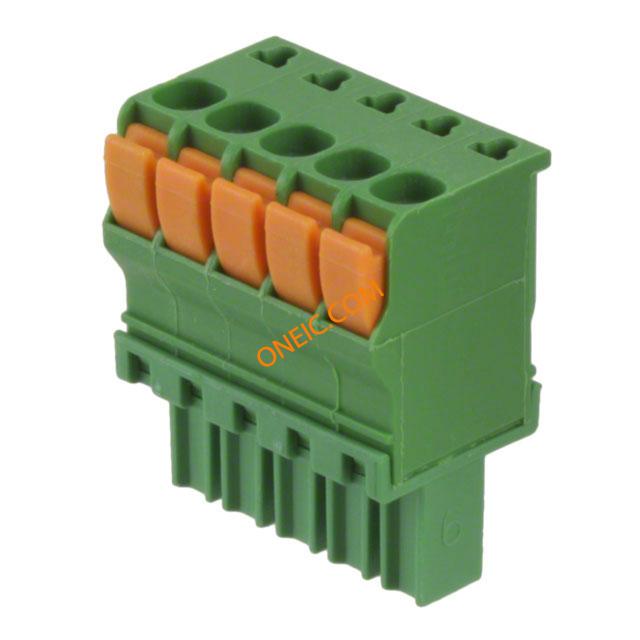

1986693-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Pluggable Terminal Blocks 3.5MM L/HAND 5 POS STR SPRING PLG TERM BLOCK PLUG 5POS STR 3.5MM STR PLUG SPRING TYPE LH 5P, 3.50mm STR PLUG SPRING TYPE LH 5P, 3.50mm Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end |
商业参数
| 标准包装规格 | 150 | 标准包装数量 | 150 |
电气参数
| 电流 | 9A | 电压 | 300V |
| 额定交流电压 | 300 | ||
机械参数
| 颜色 | Green | 间距 | 0.138" (3.50mm) |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 顶部 | 导线线规 | 14-30 AWG |
| 端接方式 | Screwless - Cage/Tension Clamp | 第二连接器 | 是 |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | 插头 |
| 接触镀层 | 铜合金镀锡 | 法兰特征 | 否 |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 插头进线方向 | 180° | 壳体材料 | 聚酰胺 |
| 包装数量 | 150 | 位数 | 5 |
| 接线端子类型 | Plug, Female Sockets | 按钮/帽颜色 | 橙色 |
| 螺纹/螺钉/孔尺寸 | 不带 | ||
产品信息
| 类型 | 直式 | 产品特性 | Side Stacking |
| 层数 | 1 | 互连系统 | 不带 |
| 每层位数 | 5 | 并排堆叠 | 是 |
