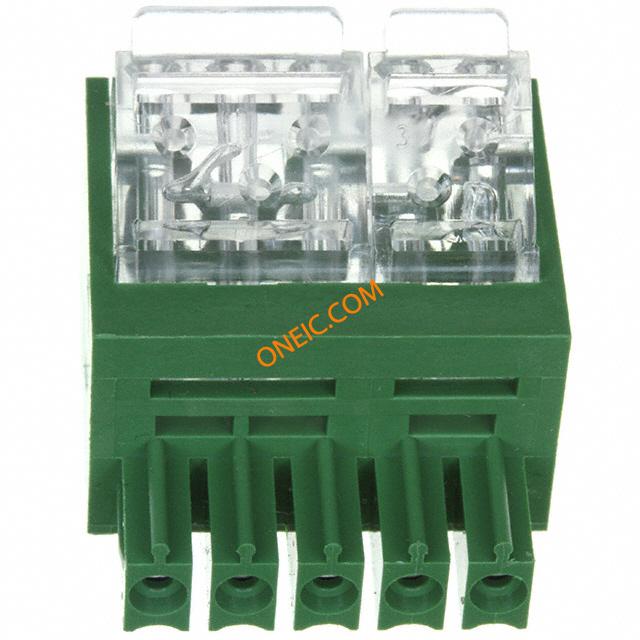

1776282-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block RCP 5 POS 3.5mm IDT RA Cable Mount 5A/Contact Fixed Terminal Blocks 5POS 3.5MMPIVOT BLK GREEN PBFR Terminal Block Connectors TERM BLOCK PLUG 5POS STR 3.5MM Wire to Board 5 Position 3.5 mm Pitch 24-22 AWG Euro Style Terminal Block |
| 分类 |
商业参数
| 产品 | Fixed Terminal Blocks | 其他名称 | A98047 |
| 产品类别 | Fixed Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 24 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 电流 | 5A | 电压 | 250V |
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Green | 间距 | 3.5 mm |
| 端部样式 | Without | 包装方式 | Bulk |
| 引脚样式 | Side | 导线线规 | 22-24 AWG |
| 端接方式 | IDT | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | Wire Receptacle |
| 接触镀层 | Tin | 法兰特征 | Without |
| 排数 | 1 | 插头进线方向 | 180° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | 180° | 连接器间距 | Side |
| 端接样式 | Wire | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Plug, Female Sockets |
| 中心触点材料 | 3.50 [0.137] | 每层极数 | 5 |
| 线规或范围 - AWG | 24-22 | 线规或范围 - mm² | 22 |
产品信息
| 类型 | Terminal Block | 连接器性别 | RCP |
| 制造商全称 | Tyco Electronics | 产品子类型 | IDC PIVOT BLOCK |
| 侧面可堆叠 | No | 层数 | 1 |
| 堆叠数量 | Without | 互连系统 | Without |
| 每层位数 | 5 | ||
