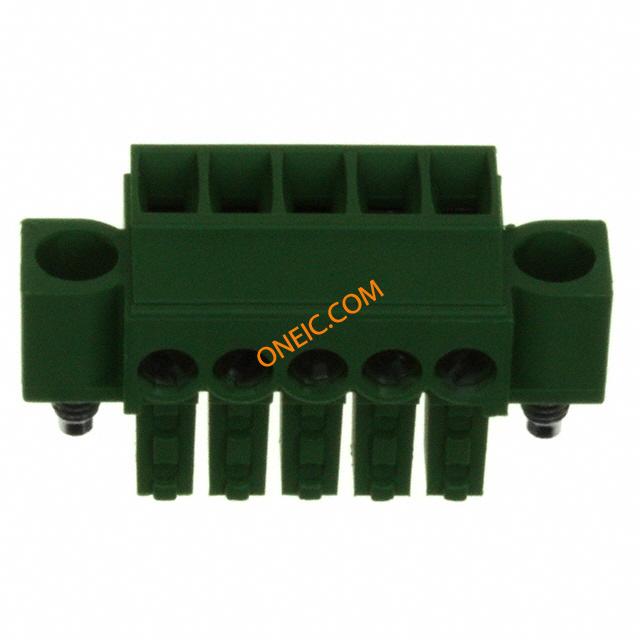

284510-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block PL 5 POS 3.5mm Solder RA Thru-Hole 11A/Contact Pluggable Terminal Blocks 3.5MM RA PLUG 5 POS W/ SCREW FLANGE Terminal Block Connectors TERM BLOCK PLUG 5POS STR 3.5MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5 Positions Euro Style Terminal Block 3.5mm Pitch 5P TERMI-BLOK PLUG CON VITI |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 150 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 11A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 最大额定电流 | 11 A |
机械参数
| 颜色 | Green | 间距 | 3.5 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 绿色 | 出线方向 | 侧 |
| 引脚样式 | Side | 螺钉尺寸 | M2 |
| 导线线规 | 14-30 AWG | 端接方式 | Solder |
| 第二连接器 | 否 | 外壳颜色 | Green |
| 安装类型 | Through Hole | 连接器类型 | Plug |
| 接触镀层 | Tin | 法兰特征 | With |
| 安装样式 | Through Hole | 排数 | 1 |
| 螺丝材料 | Brass | 插入件材料 | 磷青铜 |
| 插头进线方向 | 180° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 3.50 [0.137] |
| 包装数量 | 150 | 电缆端接方式 | 180° |
| 连接器间距 | Side | 端接样式 | Screw |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Plug, Female Sockets | 端子螺钉表面处理 | 镍 |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 每层极数 | 5 |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - AWG | 30-14 |
| 线规或范围 - mm² | 14 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | PL |
| 产品特性 | Flange | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | No |
| 层数 | 1 | 互连系统 | Without |
| 每层位数 | 5 | 并排堆叠 | 否 |
