点击放大查看

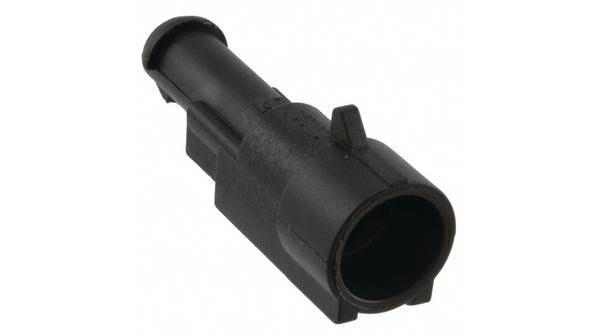

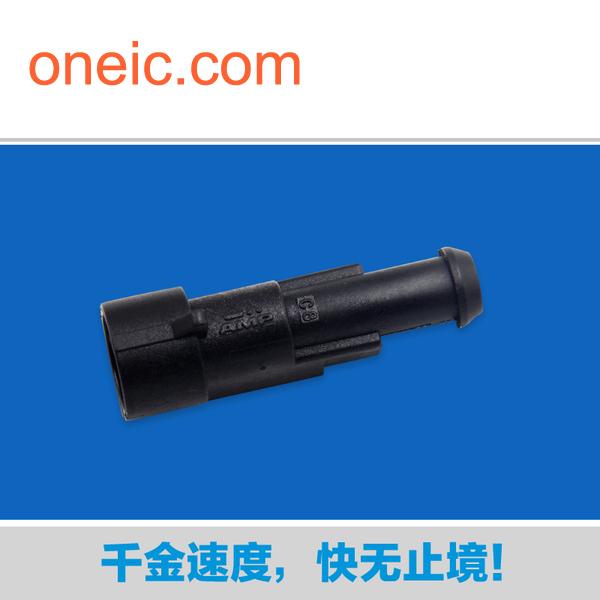

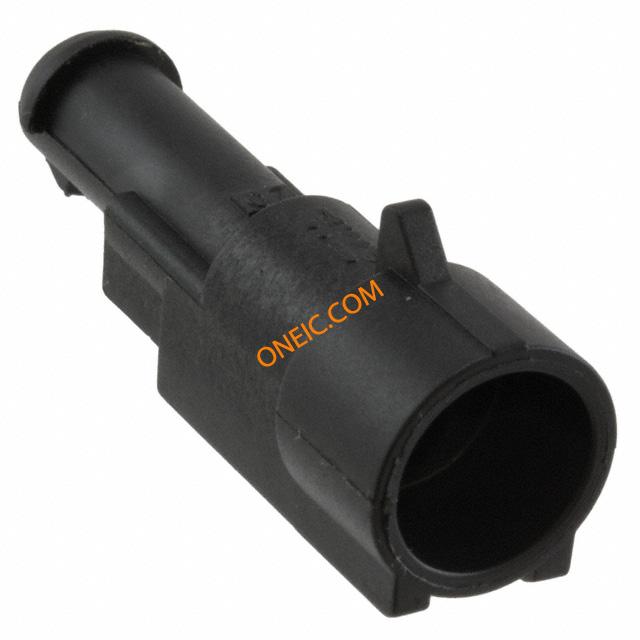

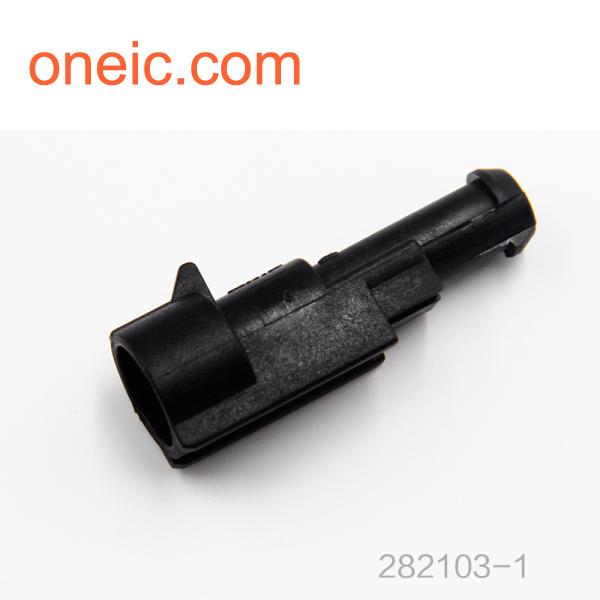

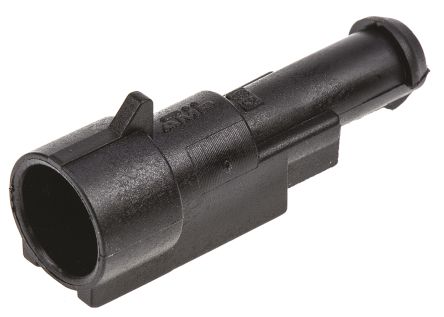

282103-1
| 制造商 | |
| 描述 | Conn Housing PL 1 POS Crimp ST Superseal 1.5 Series CONN TAB HOUSING 1POS BLACK Superseal 1.5 1 way cap housing Jones Plugs & Sockets HSG CAP 1X01C F/H Conn Housing PL 1 POS Crimp ST Product Highlights:HousingNumber of Positions = 1Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TAB HOUSING, 1WAY Superseal1.51wayreceptaclehousing Connector: wire-wire; Superseal 1.5; plug; male; PIN:1; IP67; 24VDC Crimp housing 0 mm Poles 1 Superseal, 282103-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 1 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 1P CA |
| 分类 |
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | Bulk |
| 工厂包装数量 | 2200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN 40050, IEC 529 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 24V DC | 击穿电压 | :1500V |
| 次级电压 | Red | 最大额定电流 | :14A |
| 绝缘电阻 | :200Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 13.8mm |
| 间距 | Not Required mm | 宽度 | :13.8mm |
| 长度 | 42mm | 重量 | 0.004 |
| 材料（通用） | Polyamide 6.6 Glass Filled | 包装方式 | Bulk |
| 重量（g） | 6.8 | 触头类型 | Tab |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 1 | 封装形式 | Tab |
| 锁定特性 | lock | 壳体材料 | Polyamide 6.6 GF |
| 总长度 | 42 mm | 包装数量 | 300 |
| 主要材料 | Receptacle | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 1 |
| 外径-未扩张 | :1.7mm | ||
产品信息
| SPG | 300 | 名称 | 塑壳 |
| 备注 | Contacts Not Provided | 类型 | Housing |
| 单位 | PCS | 连接器性别 | PL |
| 系列 | Super Seal | 数量 | 2200.0 |
| 制造商全称 | SUPERSEAL1.5Series | 产品子类型 | Housing |
| 适配器系列 | Superseal 1.5 | 单元数量 | 1 |
| 制造国家 | 意大利 | 设备部件号 | 282103-1.pdf |
| 最小起订量 | 1 | 适用产品/相关产品 | 6 mm Centerline Wire-to-Wire Connector |
环境参数
| 防护等级 | IP67 | 工作温度 | -40C to 125C |
相关型号
281934-2
te connectivity / amp
Connector Accessories Seal Protector Silicon Rubber Yellow Superseal 1.5 Series WIRE SEAL Superseal 1.5 yellow wire seal,1.8-2.4mm Heavy Duty Power Connectors SINGLE WIRE SEAL Connector Accessories Seal Protector Silicon Rubber Yellow Product Highlights:Seal ProtectorWire Insulation Diameter = 1.80 - 2.39 mmSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring WIRE SEAL, YELLOW Superseal1.5yellowwireseal,1.8-2.4mm Seal for wire; Superseal 1.5; Colour: yellow; 1.8÷2.4mm Gasket yellow yellow, 281934-2, TE Connectivity TE Connectivity Superseal 1.5系列 黄色 硅橡胶 电线密封, 适用于Superseal连接器 SINGLE WIRE SEAL
58583-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMP HT&D SUPRSE TOOL HAND CRIMP SUPRSEAL W/DIE IP67 AMP superseal crimp tool Connector Accessories Crimp Terminals Hand Tool With Die Set Pro-Crimper Assembly CRIMP TOOL, SUPERSEAL Crimper;Ratchet;20-16AWG;SUPERSEAL1.5SeriesContacts;58583-2Die;PRO-CRIMPER Tool: for crimping; 0,5÷1,5mm2; Series: Superseal 1.5 Crimping tool, 58583-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Superseal 压接工具 , 适用于0.35 → 1.5 mm² 线规格 PROCRIMP HT&D SUPRSEAL 1.5 SER
183036-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals MIC TAB CONTACT Superseal 1.5 Series CONN PIN 20-22AWG TIN CRIMP TERM Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 22-20AWG Superseal1.5tabcrimpcontact Contact; male; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned; 14A Crimp pin Male 22...20 AWG, 183036-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB CONTACT L.P.
282465-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Superseal 1.5 Series CONN TAB 13-15AWG TIN Contact male 15-13AWG MIC Superseal Automotive Connectors MINI MIC TAB CONTACT Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = TabWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Wire Insulation Diameter = 3.30 mmStripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB CONTACT >1,5-
183035-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Automotive Connectors MINI MIC RCPT CONT. ACT.LP Superseal 1.5 Series CONN SOCKET 20-22AWG TIN CRIMP Superseal 1.5 socket crimp contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP SOCKET, 22-20A SUPERSEALMINIMICRCPTCONT.ACT.LP Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned Crimp socket Female 22...20 AWG, 183035-1, TE Connectivity TE Connectivity Superseal 1.5 系列 触点, 使用于插头外壳 MINI MIC RCPT CONT.ACT.LP
183024-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals AMP MINI MIC TAB L.P. Superseal 1.5 Series CONN PIN 15-18AWG TIN CRIMP Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 20-15AWG Superseal1.5tabcrimpcontact Contact; male; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned; 14A Crimp pin Male 18...15 AWG, 183024-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB L.P.
281934-4
te connectivity / amp
Connector Accessories Seal Protector Silicon Rubber Green Superseal 1.5 Series RUBBER PLUG Superseal 1.5 green wire seal,1.4-1.7mm Jones Plugs & Sockets HSG ACC:WIRE SEAL GRN Connector Accessories Seal Protector Silicon Rubber Green Product Highlights:Seal ProtectorWire Insulation Diameter = 1.40 - 1.70 mmSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.5greenwireseal,1.4-1.7mm Seal for wire; Superseal 1.5; Colour: green; 1.4÷1.7mm Gasket green green, 281934-4, TE Connectivity TE Connectivity AMP Superseal 1.5系列 绿色 硅橡胶 电线密封, 适用于Superseal连接器 SINGLE WIRE SEAL

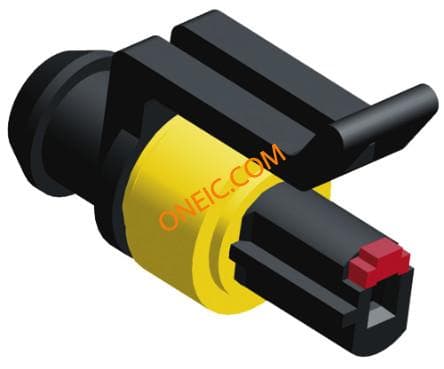

282079-2
