点击放大查看

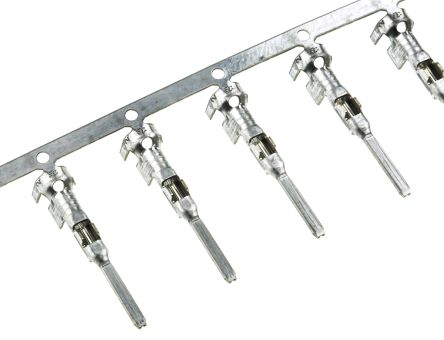

282465-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Superseal 1.5 Series CONN TAB 13-15AWG TIN Contact male 15-13AWG MIC Superseal Automotive Connectors MINI MIC TAB CONTACT Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = TabWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Wire Insulation Diameter = 3.30 mmStripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB CONTACT >1,5- |
| 分类 |
商业参数
| 产品 | Terminals | 其他名称 | A107047CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 输出端 | 0 – 24 A (Low Power) | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 铜 |
| 导线线规 | 13-15 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Tab |
| 电缆直径 | 2.5mm² | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 锁定特性 | Clean Body | 触头材料 | Brass |
| 包装数量 | Strip | 端接排数 | 压接 |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 绝缘直径 | 3.30 [0.130] | 接触件表面处理 - 配合 | 锡 (Sn) |
| 法兰上方插针尺寸 | 1.5 mm [ .059 in ] | 线规或范围 - AWG | 15 to 13 |
| 线规或范围 - mm² | 1.50-2.50² [15.5-13.5] | ||
产品信息
| 连接器性别 | PIN | 系列 | Super Seal |
| 可密封 | 是 | 产品子类型 | Contact |
| 其他规格 | 14 | 适用产品/相关产品 | 超级密封连接器 |
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -40 – 125 °C [ -40 – 257 °F ] |
文档与媒体
相关型号
282106-1
te connectivity / amp
Conn Housing M 4 POS 6mm Crimp ST Superseal 1.5 Series CONN TAB HOUSING 4POS BLACK Superseal 1.5 4 way cap housing Jones Plugs & Sockets HSG CAP 1X04C F/H Conn Housing M 4 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 4Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TAB HOUSING, 4WAY AMP SUPERSEAL 1.5 SERIES 4P CA Superseal1.54wayreceptaclehousing Connector: wire-wire; Superseal 1.5; plug; male; PIN:4; IP67; 24VDC Crimp housing 6 mm Poles 4 Superseal, 282106-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 4 路 直 母 PCB 壳体
282104-2
te connectivity / amp
Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN TAB HOUSING 2POS GREY Superseal 1.5 2 way cap housing gray Jones Plugs & Sockets 1.5 SERIES 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.52wayreceptaclehousing TE Connectivity AMP Superseal 1.5 系列 1 行 6mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳
282104-3
te connectivity / amp
Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN TAB HOUSING 2POS GREEN Automotive Connectors AMP SUPERSEAL 1.5 SER 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA
282105-2
te connectivity / amp
Conn Housing RCP 3 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN TAB HOUSING 3POS GREY Jones Plugs & Sockets 1.5 SERIES 2P CA Conn Housing RCP 3 POS 6mm Crimp ST Cable Mount Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring

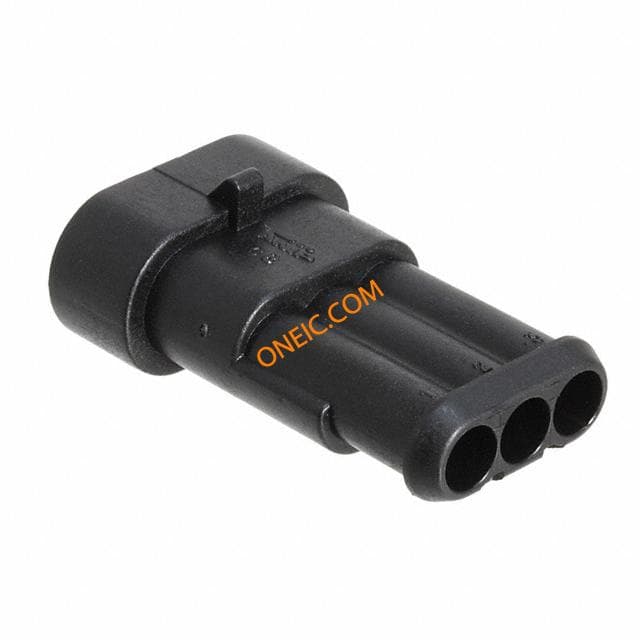

282105-1
te connectivity / amp
Conn Housing PL 3 POS 6mm Crimp ST Superseal 1.5 Series CONN TAB HOUSING 3POS BLACK Superseal 1.5 3 way cap housing Automotive Connectors 3P TAB SUPERSEAL Conn Housing PL 3 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 3Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TAB HOUSING, 3WAY CONNECTOR,SUPERSEAL,RECEPTACLE,3POS Connector: wire-wire; Superseal 1.5; plug; male; PIN:3; IP67; 24VDC Crimp housing 6 mm Poles 3 Superseal, 282105-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 3 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 3P CA
282107-1
te connectivity / amp
Conn Housing PL 5 POS 6mm Crimp ST Superseal 1.5 Series CONN TAB HOUSING 5POS BLACK Superseal 1.5 5 way cap housing Jones Plugs & Sockets HSG CAP 1X05C F/H Conn Housing PL 5 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 5Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TAB HOUSING, 5WAY Superseal1.55wayreceptaclehousing Connector: wire-wire; Superseal 1.5; plug; male; PIN:5; IP67; 24VDC Crimp housing 6 mm Poles 5 Superseal, 282107-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 5 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 5P CA
282104-1
te connectivity / amp
Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Automotive Connectors AMP SUPERSEAL 1.5 SE Superseal 1.5 Series CONN TAB HOUSING 2POS BLACK Superseal 1.5 2 way cap housing black Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 2Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TAB HOUSING, 2WAY CONNECTOR,SUPERSEAL,RECEPTACLE,2POS Connector: wire-wire; Superseal 1.5; plug; male; PIN:2; IP67; 24VDC Crimp housing 6 mm Poles 2 Superseal, 282104-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 2 路 直 母 电缆安装 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 2P CA
282106-2
te connectivity / amp
Conn Housing M 4 POS 6mm Crimp ST Superseal 1.5 Series CONN TAB HOUSING 4POS GREY Jones Plugs & Sockets 1.5 SERIES 4P CA Superseal 1.5 Series Product Highlights:HousingNumber of Positions = 4Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring AMP SUPERSEAL 1.5 SERIES 4P CA
282108-1
te connectivity / amp
Conn Housing PL 6 POS 6mm Crimp ST Superseal 1.5 Series CONN TAB HOUSING 6POS BLACK Superseal 1.5 6 way cap housing Jones Plugs & Sockets HSG CAP 1X06C F/H Conn Housing PL 6 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 6Housing Type = TabSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TAB HOUSING, 6WAY AMPSUPERSEAL1.5SERIES6PCA Connector: wire-wire; Superseal 1.5; plug; male; PIN:6; IP67; 24VDC Crimp housing 6 mm Poles 6 Superseal, 282108-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 6 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 6P CA

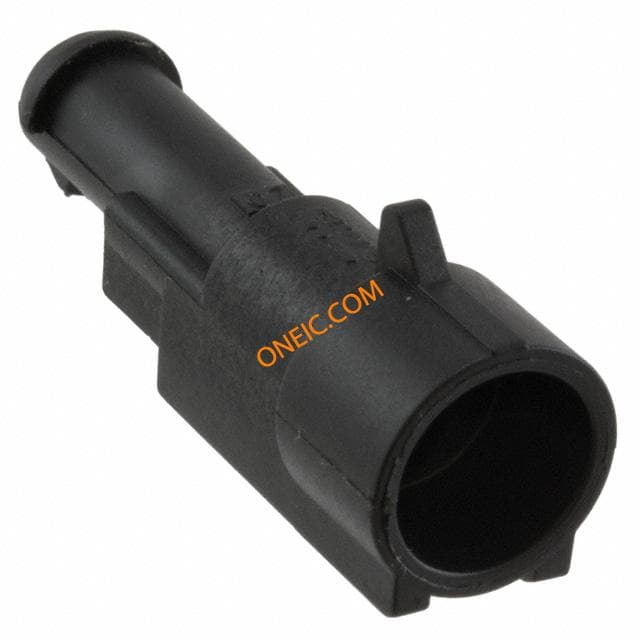

282103-1
