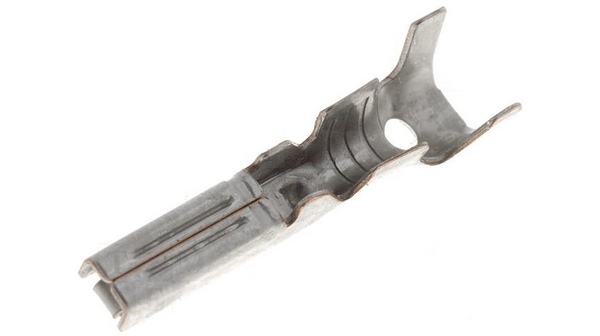

183025-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Automotive Connectors SKT 20-16 BR/SN Superseal 1.5 Series CONN SCKT 15-18AWG TIN CRIMP Superseal 1.5 crimp contact 20-16A Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP SOCKET, 20-16A CONTACT, RECEPTACLE, 18-15AWG, CRIMP SUPERSEALMINIMICRECPTC Contact; female; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned Crimp socket Female 18...15 AWG, 183025-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 压接插座 , 镀锡触芯 MINI MIC RECPT C |
| 分类 |
商业参数
| 产品 | Contacts | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 5000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 14A | ||
机械参数
| 深度 | 4.8 mm | 间距 | Not Required mm |
| 高度 | 4.7 mm | 长度 | 16.5mm |
| 重量 | 0.034 | 材料（通用） | Phosphor Bronze |
| 包装方式 | Bulk | 绝缘类型 | Not Insulated |
| 导线线规 | 15-18 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 16.5 mm |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 绝缘直径 | 1.80 â 3.30 [0.071 â 0.130] | 线规或范围 - AWG | 18-15 |
| 线规或范围 - mm² | 0.75-1.50² [18.5-15.5] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :3.3mm | ||
产品信息
| SPG | 5000 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | Super Seal |
| CAD图纸 | 3D CAD Model | 产品子类型 | Contact |
| 适配器系列 | Superseal 1.5 | 端口数 | 1 Port |
| 单元数量 | 10 | 工具类型/特性 | 58583-1, 9-1579007-1 |
| 适用产品/相关产品 | :Superseal 1.5 Series Connectors | ||
环境参数
| 工作温度 | -40C to 125C | 结工作温度 | 125C |
文档与媒体
相关型号
58583-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMP HT&D SUPRSE TOOL HAND CRIMP SUPRSEAL W/DIE IP67 AMP superseal crimp tool Connector Accessories Crimp Terminals Hand Tool With Die Set Pro-Crimper Assembly CRIMP TOOL, SUPERSEAL Crimper;Ratchet;20-16AWG;SUPERSEAL1.5SeriesContacts;58583-2Die;PRO-CRIMPER Tool: for crimping; 0,5÷1,5mm2; Series: Superseal 1.5 Crimping tool, 58583-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Superseal 压接工具 , 适用于0.35 → 1.5 mm² 线规格 PROCRIMP HT&D SUPRSEAL 1.5 SER
183036-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals MIC TAB CONTACT Superseal 1.5 Series CONN PIN 20-22AWG TIN CRIMP TERM Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 22-20AWG Superseal1.5tabcrimpcontact Contact; male; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned; 14A Crimp pin Male 22...20 AWG, 183036-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB CONTACT L.P.
539635-1
te connectivity / amp
Assembly Tools, AMP MCP Interconnection System Crimpers ERGO CRIMP HD TOOL TOOL HAND ERGOCRIMP CPC series 1 ergo crimp tool frame Crimp Tool CRIMP TOOL, 0.5-2.1MM FRAME W/OUT DIE Crimper;Ratchet;22-10AWG;SOLISTRANDSplices/Terminals;539662-2Die Crimp tool without insert, 539635-1, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具框架 ERGOCRIMP HAND TOOL
183024-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals AMP MINI MIC TAB L.P. Superseal 1.5 Series CONN PIN 15-18AWG TIN CRIMP Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 20-15AWG Superseal1.5tabcrimpcontact Contact; male; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned; 14A Crimp pin Male 18...15 AWG, 183024-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB L.P.
58583-2
te connectivity / amp
Specialty Hand Tools Easier On The Hand And Precise On The Crimp Punches & Dies PROCRIMP DIE SUPERSEAL 1.5 SER TOOL DIE PROCRIMP SUPERSEAL DIE, SDE, SUPER SEAL, 1.5 SERIES Crimp insert for Superseal, 58583-2, TE Connectivity PROCRIMP DIE SUPERSEAL 1.5 SER
539773-2
te connectivity / amp

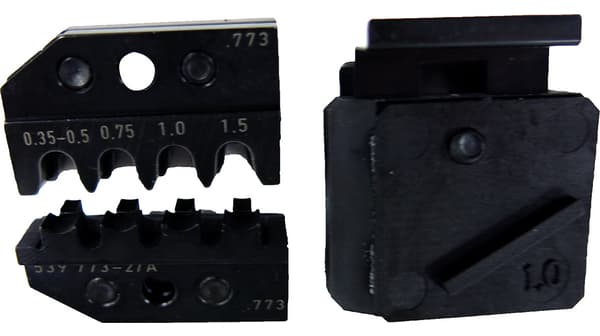

DIE FUER MINI MIC Punches & Dies DIE FUER MINI MIC TOOL DIE SET 0.35-1.5MM Crimping dies, 539773-2, TE Connectivity
