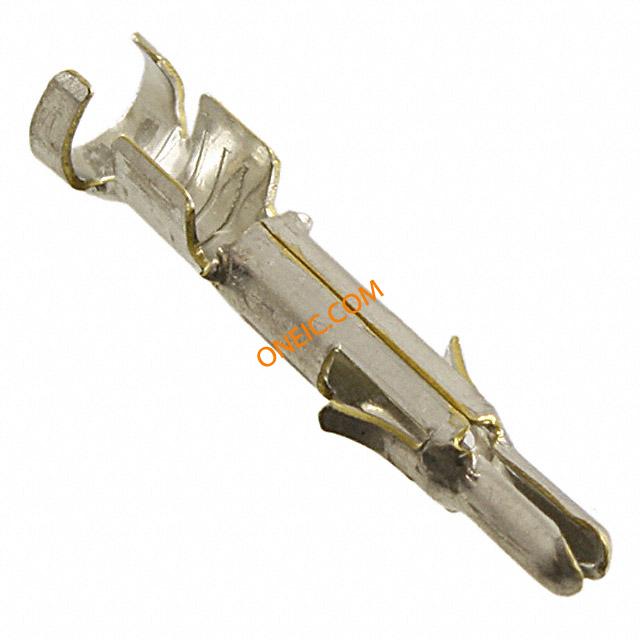

183035-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Automotive Connectors MINI MIC RCPT CONT. ACT.LP Superseal 1.5 Series CONN SOCKET 20-22AWG TIN CRIMP Superseal 1.5 socket crimp contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP SOCKET, 22-20A SUPERSEALMINIMICRCPTCONT.ACT.LP Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned Crimp socket Female 22...20 AWG, 183035-1, TE Connectivity TE Connectivity Superseal 1.5 系列 触点, 使用于插头外壳 MINI MIC RCPT CONT.ACT.LP |
| 分类 |
商业参数
| 产品 | Contacts | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 5000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大额定电流 | :14A | ||
机械参数
| 深度 | 4.8 mm | 长度 | 16.5 mm |
| 重量 | 0.032 | 材料（通用） | Phosphor Bronze |
| 包装方式 | Bulk | 绝缘类型 | Not Insulated |
| 导线线规 | 20-22 AWG | 端接方式 | Crimp |
| 触点尺寸 | :20 | 触头类型 | Receptacle |
| 基体材料 | Phosphor Bronze | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 封装形式 | in bulk | 壳体镀层 | Pre-Tin |
| 触头材料 | Phosphor Bronze | 总长度 | 16.5 mm |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 接触件端接 | Crimp | 绝缘直径 | 1.40 â 1.70 [0.055 â 0.067] |
| 线规或范围 - AWG | 22-20 | 线规或范围 - mm² | 0.30-0.60² [22-20] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :1.7mm |
产品信息
| SPG | 1 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | Super Seal |
| CAD图纸 | 3D CAD Model | 产品子类型 | Contact |
| 附件类型 | Contact | 适配器系列 | Superseal 1.5 |
| 单元数量 | 1 | 工具类型/特性 | 58583-1, 9-1579007-1 |
| 适用产品/相关产品 | :Super Seal Connectors | ||
