282109-3
| 制造商 | |

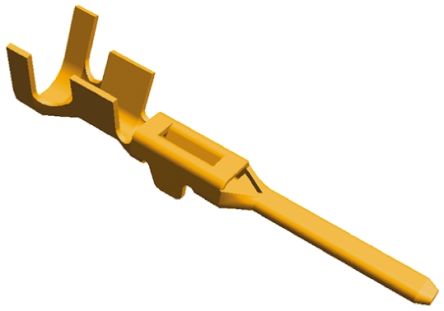

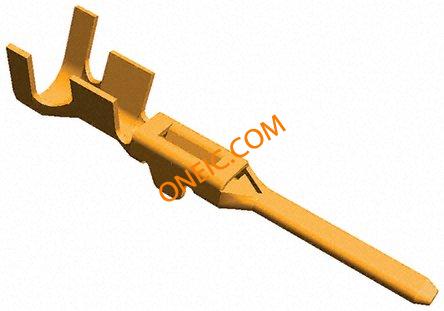

| 描述 | Contact PIN Crimp ST Cable Mount Strip Superseal 1.5 Series MINI MIC FLA-ST-KON Superseal 1.5 tab crimp contact Power to the Board MINI MIC FLA-ST-KON Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = TabWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmPackaging Method = StripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.5tabcrimpcontact 18-15 AWG Tab Crimp Straight Cable Mount Superseal Connector TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀金触点 MINI MIC TAB CONTACT |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 输出端 | 0 – 24 A (Low Power) | 额定电压 | 24 V |
| 最大额定电流 | 14 A | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 铜 |
| 绝缘类型 | Insulated | 导线线规 | 15-18 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Tab | 电缆直径 | 1.5mm² |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 连接器样式 | 180° | 锁定特性 | Clean Body |
| 触头材料 | Brass | 总长度 | 22.7mm |
| 包装数量 | Strip | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Tab |
| 接触件端接 | Crimp | 绝缘直径 | 1.80 â 3.30 [0.071 â 0.130] |
| 绝缘材料 - 类型 | Nylon | 接触件表面处理 - 配合 | 金 (Au) |
| 法兰上方插针尺寸 | 1.5 mm [ .059 in ] | 接触镀层厚度 | 31.5µin (0.80µm) |
| 线规或范围 - AWG | 18-15 | 线规或范围 - mm² | 0.75-1.50² [18.5-15.5] |
产品信息
| 连接器性别 | PIN | 系列 | Super Seal |
| 可密封 | 是 | 产品子类型 | Contact |
| 其他规格 | 14 | 适用产品/相关产品 | 外壳盖 |
