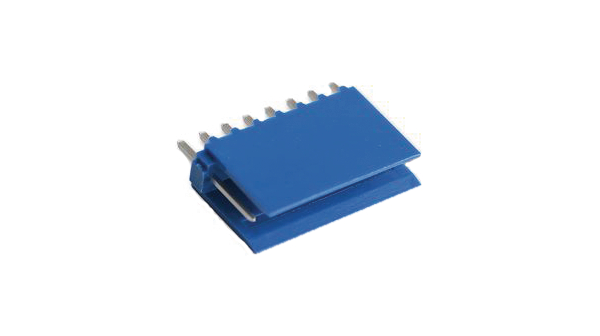

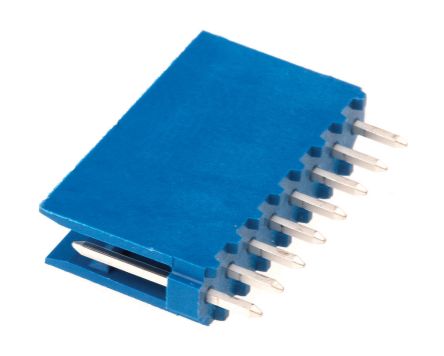

点击放大查看
281695-8
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 8POS VERT TIN T/H TE Connectivity HE1402 Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings HEADER VERT 8 POS HE14 Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 8Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8way1rowstraightHE14shroudedheader Connector: wire-board; HE14; socket; male; THT; PIN:8; straight Pin header straight Pitch2.54 mm Poles 1 x 8 HE-14, 281695-8, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接 , 通孔 HEADER HE14 STRAIGHT 8 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 保护特性 | With | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | 500 | 极数 | 1 x 8 |
| 接触电阻 | 15 mohm | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3A | 绝缘电阻 | 1000 MOhm |
机械参数
| 颜色 | Blue | 深度 | 5.08 mm |
| 间距 | 2.54 mm | 高度 | 11.4 mm |
| 重量 | 1.04 g | 底座类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 20.32 |
| 方向 | straight | 排间距 | 2.54 mm |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 [.100] |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Blue | 安装类型 | Vertical |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Tin Over Nickel |
| 安装样式 | Thru Hole | 排数 | 1 |
| 外壳材料（壳体） | 2- 面 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 总长度 | 20.32 mm | 包装数量 | Loose Piece |
| 面板安装类型 | 通孔 | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 0.64 [.025] | 端接排数 | 焊接 |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 配接方向 | Without | 触点数 | 8 |
| 端接表面处理 | Tin-Lead | 位数 | 8 |
| 第一连接器极性 | Male | 引脚总长度 | 2.9 |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.276" (7.00mm) |
| 端子柱长度 | 6.75 | 静电放电屏蔽 | 不带 |
| 第一连接器安装特征 | 1x8 | ||
产品信息
| SPG | 170 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | HE13 / HE14 |
| 覆盖范围 | 覆盖 | 钥匙类型 | 否 |
| 制造商全称 | HE1402Series | 产品子类型 | Header |
| 适配器系列 | HE14 | 放大器类型 | 17.78 |
| 连接类型 | Printed Circuit Board | 单元数量 | 1 |
| 连接方式 | Wire-Board | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 工作温度 | -55C to 125C |
