281786-8
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Loose Piece ASL & HE 13/14 PLUG HE14 IDC 180 8 P AWG 28-26 8 way single row HE14 IDT cable socket Headers & Wire Housings PLUG HE14 IDC 180 8P AWG 28-26 Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE SOCKET IDT, 1ROW, 8WAY 8waysinglerowHE14IDTcablesocket TE Connectivity AMPMODU HE14 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :HE, NFC |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU HE14 Series | 工作电压 | :500V |
| 接触电阻 | :30mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 宽度 | :5.1mm | 长度 | :17.8mm |
| 重量 | 0.002 | 材料（通用） | :Glass Filled Polyester |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 26-28 AWG | 排间距 | 2.54 mm |
| 端接方式 | :IDC | 触头类型 | Socket |
| 引脚间距 | :2.54mm | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Housing | 接触镀层 | Tin |
| 安装样式 | Wire | 排数 | 1 |
| 连接器样式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT - GF | 包装数量 | Loose Piece |
| 主要材料 | Phosphor Bronze | 电缆端接方式 | IDC |
| 端接样式 | Crimp / Insulation Displacement Crimp (IDC) | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Blue | 触点数 | 8 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 1.0 |
| 位数 | 8 | 排距 - 配合 | 2.54 |
| 中心触点表面处理 | 2.54 | 配接堆叠高度 | Without |
| 触点材料 - 配合 | Tin | 线规或范围 - AWG | 0.08-0.15² [28-26] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | HE13 / HE14 | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | Wire/Cable |
| 适用产品/相关产品 | Centerline Receptacle | ||
环境参数
| 插拔次数 | :30 | 工作温度 | :105°C |
文档与媒体
相关型号

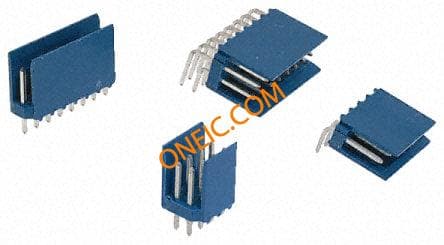

281695-8
