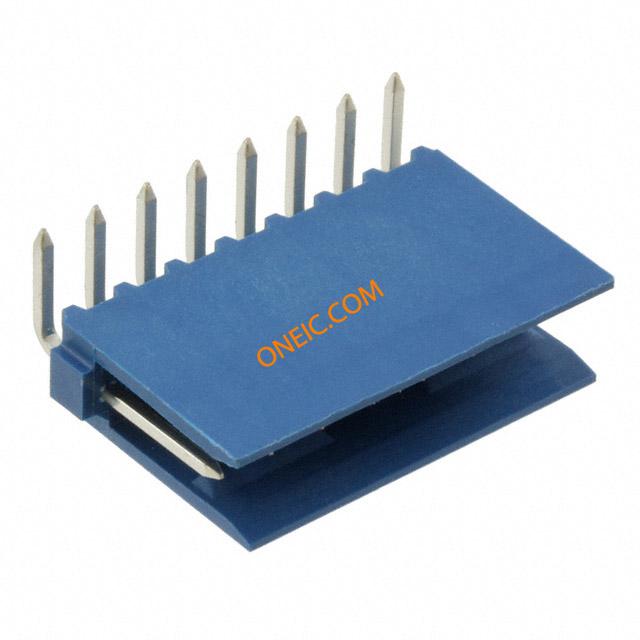

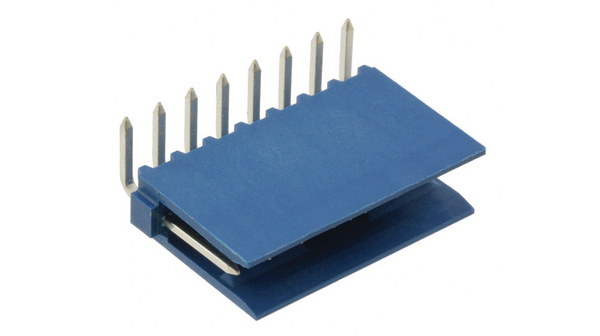

281698-8
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 8POS IDC R/A T/H TIN TE Connectivity HE1402 Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HEADER R/A 8 POS HE14 Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 8Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, RIGHT ANGLE, 1ROW, 8WAY Pin header 90° Pitch2.54 mm Poles 1 x 8 HE-14, 281698-8, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 HEADER HE14 RA 8 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :HE, NFC |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU HE14 Series | 工作电压 | :500V |
| 接触电阻 | :30mohm | 最大额定电流 | 3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 长度 | :20.32mm | 重量 | 0.002 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Bulk |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 触点形状 | Square | 外壳颜色 | Blue |
| 安装类型 | Right Angle | 释放力 | :3N |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Tin Over Nickel |
| 安装样式 | Thru Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 包装数量 | Loose Piece | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Blue | 配接方向 | Without |
| 触点数 | 8 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 8 | 安装孔直径 | :1mm |
| 中心触点材料 | 2.54 [.100] | 接触长度 - 配合 | 0.276" (7.00mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | HE13 / HE14 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :30 | 工作温度 | :105°C |
文档与媒体
